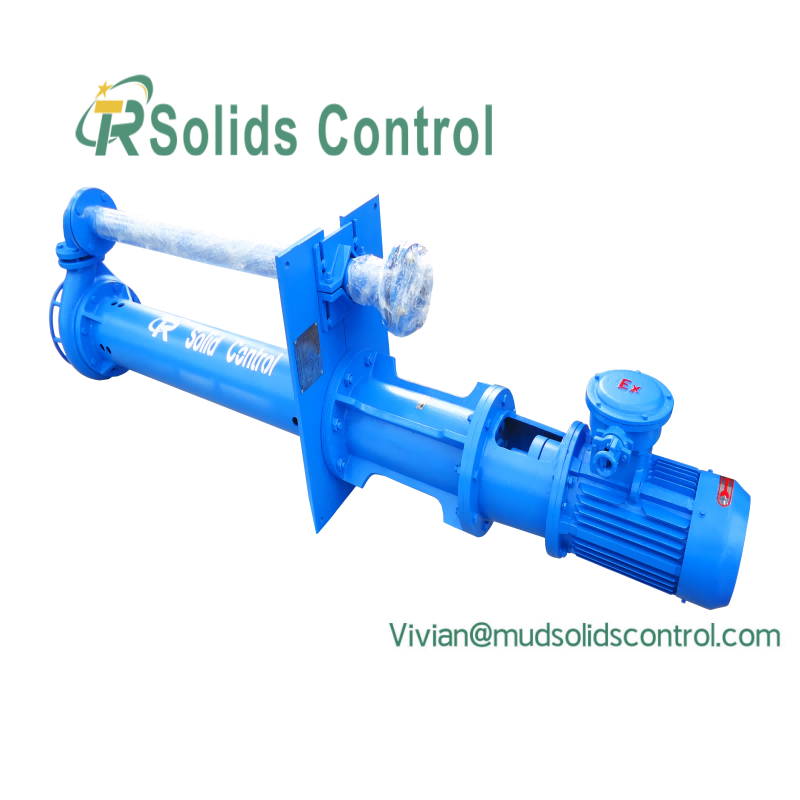

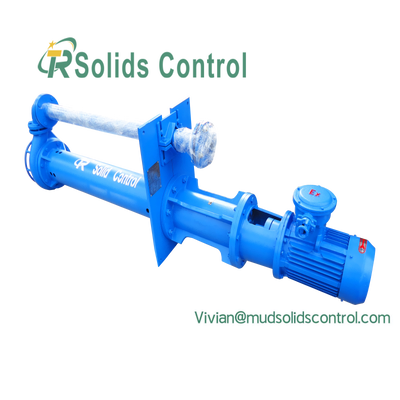

TRYZ Submersible Slurry Pump for Solids Control & Mud Handling

• Purpose-built for solids control systems: The TRYZ series is designed to reliably supply mud for shale shakers and decanter centrifuges directly from mud pits, perfectly matching the needs of oilfield and HDD applications.
• Cantilever structure with no shaft seals: Featuring a single-stage, single-suction cantilever design, the pump has no bearings or shaft seals between the impeller and casing. This eliminates seal failure risks, reducing downtime and maintenance work.
• Rugged shaft design for stable operation: The pump shaft in submerged parts is built with sufficient rigidity to handle heavy loads, ensuring smooth and continuous operation even in harsh conditions.
• Semi-open impeller with mixing blades: The semi-open impeller with mixing blades at the inlet prevents solid particle settlement, enabling efficient handling of high-density, abrasive media with large solid particles.
• Flexible submerged length options: The standard submerged length is 1.3 meters, suitable for most mud pits. An extended suction pipe can be added on request to adapt to different installation depths.
• Reliable direct drive system: The vertical motor is mounted on the bearing support base and connected to the pump via a coupling, ensuring stable power transmission and simple maintenance.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
