180m3/H Mud Desilter TR Solids Control TRCN100 16N Mud Cleaning System

Name: 180m3/H Mud Desilter TR Solids Control TRCN100 16N Mud Cleaning System
Brand: Xian TianRui Petroleum Machinery Equipment Co., Ltd.
SKU: TRCN100-16N
Price: 23,037.00 USD
Availability: InStock

Brand Name:	TR Solids Control
Model Number:	TRCN100-16N
Price:	USD 275-45800 or Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,China

Certification:

API Certificate, ISO9001 Certificate

Model:

TRCN100-16N

Capacity:

180m3/h

Hydrocyclone:

12nos

Inlet Size:

DN150mm

Outlet Size:

TRZS752

HS Code:

8474100000

Highlight:

180m3/H Mud Desilter

Mud Desilter TR Solids Control

TRCN100 16N Mud Cleaning System

Product Description

Maximize Your Mining Output with TRCN100 16N Mud Desilter's Industry - Leading Mud Cleaning System

Mining's Widely Utilized TRCN100 - 16N Mud Desilter Boasting Exceptional Hydrocyclones

Introduction

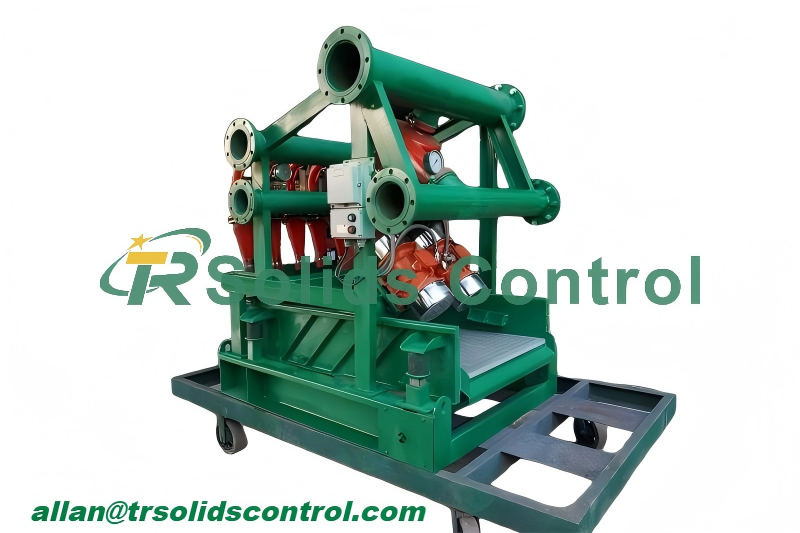

The TRCN100 - 16N mud desilter is equipped with 100mm polyurethane hydrocyclones, a mud trough, a manifold, a motor, a shale shaker, a base, and all necessary connections. The hydrocyclone has a cylindrical upper part with a tangential suction tube and a central overflow tube, and a conical lower part with a bottom silt discharge tube, joined by a hoop.

As a third - class solids control device in drilling, it removes 20 - 40 µm solid particles from drilling liquid. With years of practical use, this model has been reformed. It offers reliable technical performance, excellent treatment results, and the cyclone has a long lifespan and stable operation, making it suitable for various oilfield drills.

Features of TRCN Mud Desilter
1. Heat treatment on entire deck.

2. Painting: Heavy anti-corrosion paint.

3. High strength compound rubber material used to reduce shocking.

4. Inlet and outlet adopt fast joint connection.

5. Electrinic control system from famous brand explosion-proof eletronic switch.

6. Cyclones with high wearing-resisting polyurethane and high-chromium iron.

7. International famous brand vibration motor with Martin or OLI.

Technical Data of TRCN Series Mud Desilter

Model	TRCN100-4N	TRCN100-6N/8N	TRCN100-12N/16N	TRCN100-20N
Capacity	60m³	90m³/120m³	180m³/240m³	300m³
Cyclone Specs	4”
Cyclone Qty	4 pcs	6pcs/8pcs	12pcs/16pcs	20pcs
Working Pressure	0.25-0.4Mpa
Inlet Size	DN100mm	DN125mm	DN150mm	DN150mm
Outlet Size	DN125mm	DN150mm	DN200mm	DN200mm
Separation Point	15μm -44μm
Bottom Shaker	TRZS60	TRZS60	TRZS752	TRZS703
Dimension	151011602000mm	151013602250mm	183512301810mm	277017851810mm
Weight	550kg	560kg/580kg	1150kg	1950kg
Remark	All desilter could be customized without bottom shaker.

Application in Drilling Solids control

Our mud desilter is currently used in micro-tunneling, oil & gas drilling, city bored piling, Drilling Waste Management, Oil Sludge Dewatering Systems, environment protection, Coal Bed Gas Solids Control System, trenchless HDD, mining, tunneling construction, Oil Mud Seperation, Water Drilling etc.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
