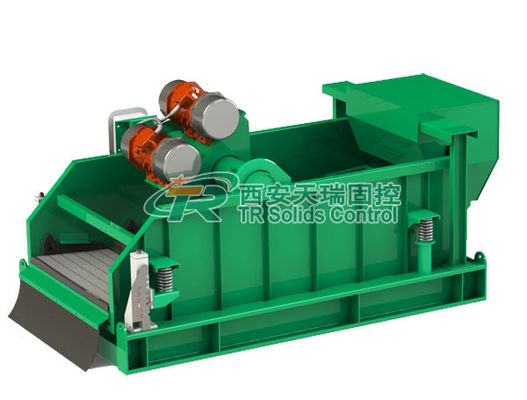

TRPZS584 Type Drilling Fluids Mud Shaker 100 - 300 Mesh 130m3/H Capacity

Name: TRPZS584 Type Drilling Fluids Mud Shaker 100 - 300 Mesh 130m3/H Capacity
Brand: Xian TianRui Petroleum Machinery Equipment Co., Ltd.
SKU: TRPZS584
Price: 23,037.00 USD
Availability: InStock

Brand Name:	TR Solids Control
Model Number:	TRPZS584
Price:	USD 275-45800 or Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, China

Certification:

API Certificate, ISO Certificate

Model:

TRPZS584

Motor Power:

2×1.72KW

Shaker Screen:

585*1165mm

Screen Area:

2.7m2

Double Amplitude:

7mm

Adjustment Angle:

-3°~+3°

Highlight:

Drilling Fluids Mud Shaker

Mongoose Type Mud Shaker

300 Mesh Mud Shaker

Product Description

High - Performance Mongoose Type Drilling Fluids Mud Shaker: 100 - 300 Mesh, 130m³/h Capacity, Superior Solids - Liquids Separation

TRPZS584 Type Drilling Fluids Mud Shaker for Solids Liquids Separation

Main Introduction

Drilling shale shaker is the first class solids control equipment in drilling fluids processing system. It’s also known as key solids control equipment in mud recovery system. Mud shale shaker decides performance of the whole solids control system. TR shale shaker draws on the design experience and advanced technology at home and abroad, and uses imported vibration motor. It is used widely in mud recovery system of oil & gas drilling, HDD trenchless, shield & bored pile currently.

TR Solids Control is a main manufacturer of shale shaker in China. Our shale shaker has good price and quality among clients. It can remove cuttings above 75 μm brought from the drilling well to leave the liquid with smaller particles into the tanks below, which will flow into next grade solids control equipmentfor further treatment.

Advantage of Our Drilling Shale Shaker

Martin or OLI vibration motor.
Vibration strength is 7.5G, adjustable.
Screen box angle is mechanical and adjustable.
Wedge-type compaction device facilitates fast replacement of screen.
Overall heat treatment, long time work.
Schneider or Siemens electrical components.
Hopper type feed mode reduces feed speed.

Technical Parameters of TR Shale Shaker

Model	TRZS703	TRZS2000	TRZS585
Vibrating Model	Linear	Linear	Linear
Motor Power	2×1.5KW	2×1.72KW	2×1.72KW
Vibrating Strength	≤7.0G	≤7.5G	≤7.5G
Amplitude	6.0~7.2mm	6.0~7.2mm
Capacity	527GPM	615GPM	615GPM
Deck Adjustment	-1°~5°	-1°~5°	-1°~5°
Screen of Deck	3	3	4
Electric	380V/50HZ,460V/60HZ or Customized
Decibels	<85db	<85db	<85db
Ex Standard	ExdIIBt4 / IEC EX/ ATEX	ExdIIBt4 / IEC EX/ ATEX	ExdIIBt4 / IEC EX/ ATEX
Dimension	2800X1785X1750	2800X1600X1690	2800X1600X1690
Weight	1550kg	1850kg	1750kg

Product Application

TR mud shale shaker is widely used in oil & gas drilling, tunneling construction, trenchless HDD, Drilling Waste Management, city bored piling, micro-tunneling, Oil Mud Seperation, environment protection, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, mining, Water Drilling etc.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
