TR Desander: High-Efficiency Solids Control Equipment | China Manufacturer

Brand Name:	TR Solids Control
Model Number:	TRCS200-1S/2S,TRCS250-1S/2S,TRCS250-1S/2S,TRCS300-1S/2S
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,China

Certification:

API Q1,ISO9001

Model:

TRCS200-1S/2S

Capacity:

60/120 M³/h

Cyclone Specs:

Cyclone Specs

Working Pressure:

0.25~0.4MPa

Highlight:

TR Desander solids control equipment

high-efficiency desander China manufacturer

solids control equipment with warranty

Product Description

TR Desander: High-Efficiency Solids Control Equipment | China Manufacturer

Product Introduction

As a leading solids control equipment manufacturer based in Xi’an, China, TR Solids Control specializes in producing high-performance Desander units for oilfield drilling, HDD projects, and solid-liquid separation systems. Our Desander is a critical component in the drilling fluid recycling system, designed to efficiently remove sand particles (45μm~75μm) from drilling mud, thereby protecting downstream equipment like pumps and pipelines from abrasion and damage .

Our Desander adopts advanced centrifugal separation technology. Drilling mud is fed tangentially into the cyclone, where centrifugal force separates solid particles from the fluid. Coarse solids sink along the cyclone wall and are discharged from the bottom, while clean mud overflows from the top. Equipped with high-quality wear-resistant cyclones (high chromium cast iron/polyurethane), our Desander features long service life, low blockage risk, and easy maintenance .

Key Advantages of TR Desander

Efficient Separation: Removes 45μm~75μm solid particles, ensuring clean drilling fluid quality.
Durable Construction: Premium cyclone materials resist wear and corrosion, suitable for harsh oilfield environments.
Flexible Configuration: Multiple models (1/2/3 cyclones) and flow rates (60~360m³/h) to meet diverse project needs.
Space-Saving Design: Compact structure with small footprint, easy to install and integrate into mud systems.
Cost-Effective: Factory direct supply reduces intermediate costs, offering competitive pricing for bulk orders.

Desander Specifications

Model	TRCS200-1S/2S	TRCS250-1S/2S	TRCS250-3S	TRCS300-1S/2S
Capacity	60/120 m³/h	120/240 m³/h	360 m³/h	140/280 m³/h
Cyclone Specs	8in	10in	10in	12in
Cyclone Qty	1nos/2nos	1nos/2nos	3nos	1nos/2nos
Working Pressure	0.25~0.4MPa	0.25~0.4MPa	0.25~0.4MPa	0.25~0.4MPa
Inlet Size	DN125mm	DN150mm	DN150mm	DN150mm
Outlet Size	DN150mm	DN200mm	DN200mm	DN200mm
Separation Point	45μm~75μm	45μm~75μm	45μm~75μm	45μm~75μm
Bottom Shaker	TRTS60/N/A	TRTS60/N/A	TRZS752/N/A	TRZS752/N/A
Dimension (L×W×H)	1510×1160×2000mm	1510×1360×2250mm	1835×1230×1810mm	1835×1230×1810mm
Weight	570/620kg	670/760kg	1300kg	1380kg

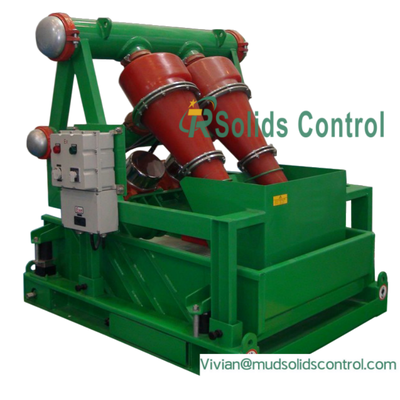

TR Desander: High-Efficiency Solids Control Equipment | China Manufacturer 0

Application Scenarios

Our Desander is widely used in:

Oil & gas drilling fluid treatment
HDD (Horizontal Directional Drilling) projects
Pile foundation engineering & slurry shield construction
Drilling waste management systems
Sewage sludge treatment & industrial solid-liquid separation

Why Choose TR Solids Control?

TR Solids Control is a professional solids control equipment manufacturer integrating R&D, production, and sales. We have passed industry certifications and provide one-stop services including custom design, technical support, and after-sales service. Our Desander has been exported to over 40 countries, trusted by global customers for stable performance and reliable quality.

If you need high-efficiency Desander or other solids control equipment (e.g., mud cleaner, shale shaker, mud agitator), please contact us for a free quotation and professional solution. We are committed to providing you with customized products to meet your project requirements
