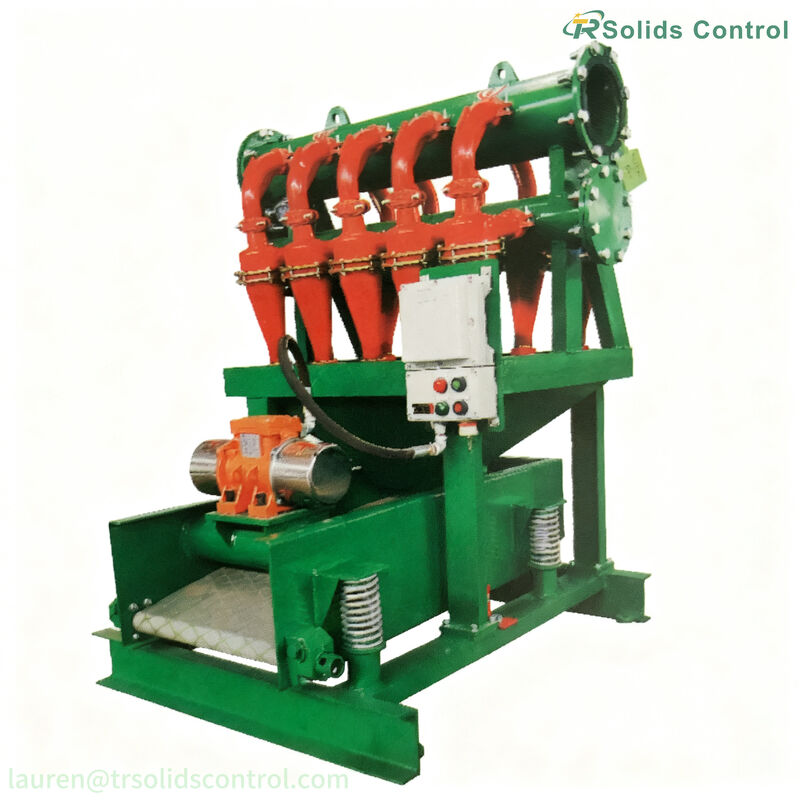

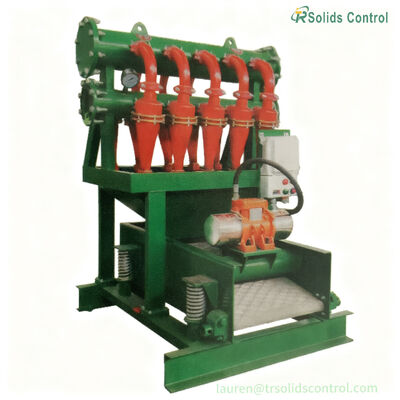

High-efficiency Solid Control Desilter Equipment

Brand Name:	TR Solids Control
Model Number:	TRCN100-4N;TRCN100-6N/8N;TRCN100-12N/16N;TRCN100-20N
MOQ:	1
Price:	USD2911-18824or Negotiable
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,China

Certification:

API Certificate, ISO Certificate

Highlight:

high-efficiency solid control desilter

mud cleaning system equipment

desilter for solid control

Product Description

The desilter is a key purification equipment in the drilling fluid solid control system. The main body can be directly equipped with cyclones, adopting a 4-inch cyclone cone structure to stably separate 15–44μm fine solid particles, effectively reduce mud sand content, and improve mud performance and reuse rate.

This desilter features a quick-clamp structure for easy installation, disassembly and maintenance. The cyclone chamber and underflow outlet are made of high-wear-resistant polyurethane, resistant to erosion and corrosion with longer service life. It has large processing capacity, stable operation and low noise, widely used in oil drilling, HDD, pile foundation mud, mine tailings and other solid control desilting applications.

Choosing the desilter ensures strong adaptability, convenient replacement and high separation efficiency, providing a stable and reliable solid control solution for on-site mud purification.

model	TRCN100-4N	TRCN100-6N/8N	TRCN100-12N/16N	TRCN100-20N
capacity	60m³/h	90m³/h	180m³/h	300m³/h
cyclone Specs	4in	4in	4in	4in
cyclone qty	4nos	6nos/8nos	12nos/16nos	20nos
working pressure	0.25~0.4mpa	0.25~0.4mpa	0.25~0.4mpa	0.25~0.4mpa
iniet size	DN100mm	DN125mm	DN150mm	DN150mm
outlet size	DN125mm	DN150mm	DN200mm	DN200mm
separation point	15μm~44μm	15μm~44μm	15μm~44μm	15μm~44μm
bottom shaker	TRZS60/N/A	TRZS60/N/A	TRZS752/N/A	TRZS703/N/A
dimension	1510x1160X2000mm	1510x1360x2250mm	1835x1230x1810mm	2770x1785x1810mm
weight	550kg	560kg/580kg	1150kg	1950kg

remark All the desiler could be customized without shaker

Why Choose TR Solids Control Desanders?

Compatible with International Brand Cyclones, Precise & Efficient Separation
Wear-Resistant Materials for Longer Service Life
Quick-Clamp Installation for Easy Maintenance
Compact Design & Large Processing Capacity
High-Quality Components for Stable Operation
API Certified for Guaranteed Quality
