300m³/h Big Capacity Drilling Mud Desander with DN150 Inlet – ISO9001 & API Certified

High Capacity 300m³/h Drilling Mud Desander with DN150 Inlet – API & ISO Certified, for Solids Control System

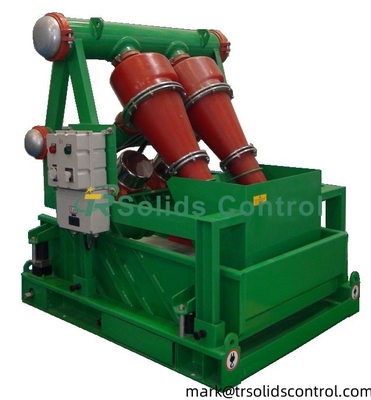

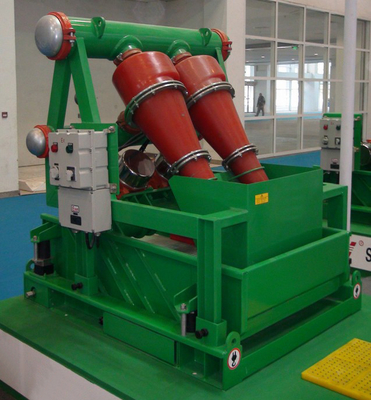

TRCS Series Drilling Mud Desander is a key component in solids control systems, serving as the second-stage treatment equipment to remove sand-sized particles from drilling fluid. Designed with high processing capacity, modular structure, and wear-resistant materials, it effectively separates solids ranging from 45μm to 75μm, helping to maintain stable mud properties and reduce wear on downstream equipment.

TR desander operates using centrifugal force generated in polyurethane or high-chrome alloy hydrocyclones. The drilling mud enters the cone under pressure, heavier solids spiral down along the cone wall to the bottom discharge port, while cleaner fluids exit from the overflow outlet. It can be used standalone or combined with an underflow shaker to further recover valuable drilling fluids.

Key Advantages

✅ Large Flow Rate: Capacity up to 300m³/h, ideal for deep wells and high-volume drilling projects.
✅ Durable Hydrocyclones: Optional in pure polyurethane or high-chromium cast, highly resistant to erosion.
✅ Quick Assembly & Maintenance: Clamp-type cone connectors and modular design make disassembly and replacement easy.
✅ Flexible Configurations: Multiple cone sizes (8", 10", 12") and optional 1–3 cyclone units to suit different flow requirements.

Technical Specifications

Note: Desander models can be customized without a bottom shaker upon request.

Application Fields

TR Mud Desander is widely used in:

• Oil & Gas Drilling Solids Control
• Horizontal Directional Drilling (HDD)
• Drilling Waste Management Systems
• Bored Pile Construction
• Tunnel & Microtunneling Slurry Recovery
• Oil Sludge and Mud Treatment
• Mining & Mineral Slurry Separation
• Environmental and Groundwater Protection Projects

Our desander units comply with API and ISO standards, and have earned a good reputation worldwide for cost-effective pricing, fast delivery, and reliable performance.

Why Choose TR Solids Control?

• Over 10 years of professional manufacturing experience in solids control equipment
• Products are 100% compatible
