products details

Home Products

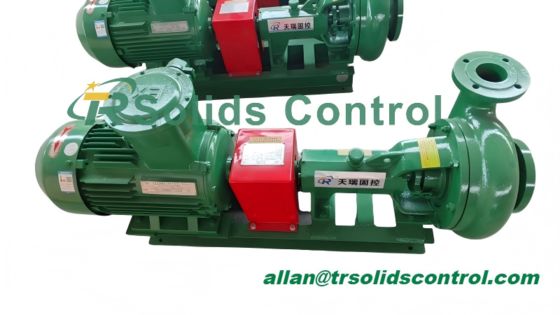

TR Solids Control Centrifugal Pump Solids Control Equipment

Brand Name:	TR Solids Control
Model Number:	TRSB8X6-13
Price:	USD 275-45800 or Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,China

Certification:

API / ATEX / IEC / ISO9001

Highlight:

TR Solids Control Centrifugal Pump

Centrifugal Pump Solids Control Equipment

Product Description

In many industrial fields, such as mining, beneficiation, dredging, sewage treatment, etc., Mission pump as a key mechanical equipment, plays a pivotal role. With its unique design and powerful performance, it provides a reliable solution for the transportation of solid-liquid mixtures under various complex conditions.

Mission pump is mainly composed of pump body, impeller, shaft, bearing, sealing device and other components. Its working principle is based on the role of centrifugal force, when the motor drives the impeller to rotate at a high speed, the impeller drives the liquid to do high-speed rotating movement, the liquid is thrown out of the impeller under the action of centrifugal force, into the volute flow channel of the pump body, so as to achieve liquid transportation.

Mission Pump Technical Parameters

Model	Power	Flow	Lift(m)	Efficiency	NPSH	Electric
TRSB8*6-14	75KW	320m³/h	40m	65%	5	50HZ
TRSB8*6-12	75KW	355m³/h	43m	66%	4.8	60HZ
TRSB8*6-13	55KW	290m³/h	33m	64%	5.5	50HZ
TRSB6*5-12	55KW	196m³/h	48m	61%	3	60HZ
TRSB6*5-13	45KW	180m³/h	34m	60%	3	50HZ
TRSB5*4-14	45KW	149m³/h	61m	58%	4.6	60HZ
TRSB6*5-12	37KW	160m³/h	30m	60%	3	50HZ
TRSB5*4-12	37KW	112m³/h	45m	58%	4.6	60HZ
TRSB6*5-11	30KW	120m³/h	21m	62%	2.5	50HZ
TRSB5*4-12	30KW	112m³/h	37m	57%	4.6	60HZ
TRSB5*4-12	22KW	90m³/h	30m	56%	4.5	50HZ
TRSB5*4-10	22KW	105m³/h	30m	57%	4.2	60HZ
TRSB5x4-11	18.5KW	90m³/h	24m	56%	4.5	50HZ
TRSB4x3-12	18.5KW	55m³/h	46m	48%	4	60HZ
TRSB4x3-13	15KW	50m³/h	40m	48%	4.5	50HZ
TRSB4x3-11	15KW	54m³/h	35m	47%	4	60HZ
TRSB4x3-12	11KW	45m³/h	30m	47%	4	50HZ
TRSB3x2-12	11KW	28m³/h	45m	40%	3.1	60HZ
TRSB3x2-12	7.5KW	45m³/h	24m	46%	4	50HZ
TRSB3x2-11	7.5KW	25m³/h	35m	41%	3.1	60HZ
TRSB3x2-11	5.5KW	20m³/h	23m	39%	3	50HZ

Mission pump application in drilling industry:

The Mission pump is mainly supplied to the solid control circulation system of oil rig, which is used to provide drilling fluid with certain displacement and pressure to the equipment such as mud desander, mud desilter, mud mixer, to ensure the efficient work of these solids control equipment. Mud Mission pump use advanced design theories to pump drilling fluids or industrial suspensions (slurries). Drilling mud centrifugal pumps pump abrasive, viscous and corrosive liquids. We will provide our customers with the best products to meet the needs of different conditions.
