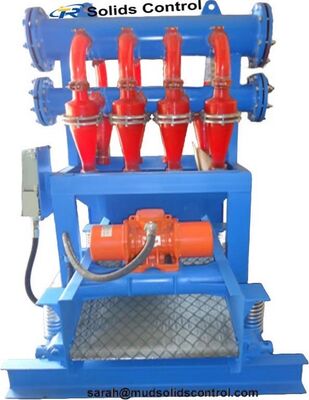

TRCN100-8N Drilling Mud Desilter 120m³/h Solid Control Equipment

Factory Direct Supply TRCN100-8N High-Efficiency Hydrocyclone Desilter, 120m³/h Large Capacity

Product Description

The TRCN100-8N desilter adopts advanced hydraulic cyclone separation technology, without complex moving parts. It relies on the centrifugal force generated by the rotation of the fluid itself to achieve efficient solid-liquid separation, featuring stable operation, low noise, convenient maintenance and low energy consumption.Each equipment has passed multiple quality inspection procedures before leaving the factory to ensure that the performance meets the standards and the operation is reliable. It can adapt to harsh industrial working conditions for a long time and meet the needs of large-scale continuous production.

Product Advantages & Features

☑️ TRCN100-8N with reasonable structure design and strong compatibility. It can provide adjustment according to customers' actual working conditions, suitable for mud purification scenarios in different industries.

☑️ 120m³/h, with stable processing efficiency. It can meet the continuous operation needs of medium and large-scale industrial production.

☑️ 8nos of 4in high-efficiency hydrocyclones, designed with multi-hydrocyclone parallel layout, which ensures uniform flow distribution and stable pressure bearing, reduces the load of a single hydrocyclone, and extends the service life of the equipment.

☑️ 0.25~0.4MPa pressure range design can ensure the formation of stable eddy current to ensure separation accuracy.

☑️ Inlet diameter DN125mm, outlet diameter DN150mm,The scientific caliber design reduces the resistance during mud transportation, lowers energy consumption.

☑️ Separation point is 15μm~44μm, which can accurately separate fine solid particles of 15μm to 44μm in the mud, improve the slurry quality.

☑️ Equipped with bottom shaker screen model TRZS60/N/A. It can secondary recover the underflow discharged from the hydrocyclone, maximize the retention of useful liquid phase,and improve resource utilization.

☑️ Overall dimensions are 1510×1360×2250mm, compact structure, small space occupation, convenient for on-site layout, transportation and installation, suitable for production sites of different scales.

Technical Specifications

The Advantages of Choose TR-Desilter ?

✅ Precise Separation: Designed for 15-44μm fine particles, with high separation efficiency and thorough mud purification.

✅ Stable and Durable: The main body of the equipment is made of high-strength wear-resistant and corrosion-resistant materials, and the inner lining of the hydrocyclone is made of high-wear-resistant polyurethane material, with excellent anti-aging and wear-resistant performance, extending the service life of the equipment.

✅ Convenient Installation, Easy Maintenance: Overall modular design, simple installation process,and quick installation and commissioning can be completed;daily maintenance only needs regular inspection and cleaning, low maintenance cost.

✅ Wide Adaptability: It adapts to the mud treatment needs of different properties and concentrations, with strong versatility and flexible adaptation to various industrial sites.

✅ Factory Direct Supply, Perfect Service: Source manufacturer,high cost-effectiveness; provides comprehensive after-sales services such as on-site installation guidance, technical support, equipment maintenance, and we can provide complete set of solids control solutions according to customers' needs.
