TR 4 Inch Hydrocyclone Desilter for Drilling Mud Solids Control

Brand Name:	TR Solids Control
Model Number:	TRCN100-4N,TRCN100-4N,TRCN100-12N/16N,TRCN100-20N
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,China

Certification:

API Q1,ISO9001

Model:

TRCN100-4N

Capacity:

60m³

Inlet Size:

DN100mm

Outlet Size:

DN125mm

Product Description

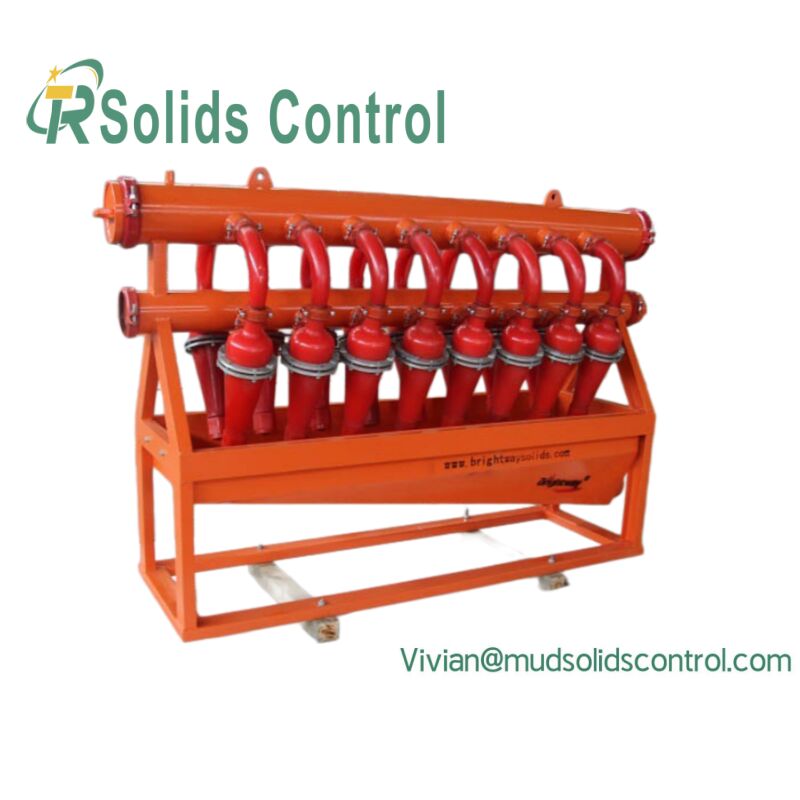

TR 4 Inch Hydrocyclone Desilter for Drilling Mud Solids Control

Product Description

The TRCN Series Desilter is a critical third-stage solids control equipment designed for oilfield and HDD drilling fluid systems, specifically engineered to remove fine solid particles (15~44μm) from drilling mud. Built with 4-inch hydrocyclones and optional bottom shaker screens, this desilter ensures efficient solids-liquid separation, protects downstream equipment, and maintains optimal drilling fluid performance.

Our drilling mud desilter comes in multiple configurations (TRCN100-4N / 6N/8N / 12N/16N / 20N) to match different flow rate requirements, with processing capacities ranging from 60m³ to 300m³. Operating at a working pressure of 0.25~0.4MPa, the 4 inch hydrocyclone desilter delivers stable, high-efficiency separation for both weighted and unweighted drilling fluids.

Customization is available for all models: the desilter can be configured with or without a bottom shaker (underflow screen) to meet your specific site needs. The compact, modular design of this solids control equipment ensures easy installation, low maintenance, and reliable performance in harsh drilling environments.

Key Features & Advantages

✅ High-efficiency Separation: 4-inch hydrocyclones remove fine solids down to 15μm, improving mud quality and reducing wear on pumps and downstream equipment.
✅ Flexible Configurations: Multiple cyclone quantities (4~20 nos) and optional underflow shaker screens to match your processing needs.
✅ Durable Construction: Heavy-duty frame and corrosion-resistant components ensure long service life in harsh oilfield conditions.
✅ Low Maintenance: Modular design allows quick cyclone replacement and easy cleaning, minimizing downtime.
✅ Customizable Solutions: TR Solids Control offers tailored desilter systems to fit your specific drilling fluid system requirements.

Technical Specifications

Model	TRCN100-4N	TRCN100-6N/8N	TRCN100-12N/16N	TRCN100-20N
Capacity	60m³	90m³ / 120m³	180m³ / 240m³	300m³
Cyclone Specs	4 inch	4 inch	4 inch	4 inch
Cyclone Qty	4 nos	6 nos / 8 nos	12 nos / 16 nos	20 nos
Working Pressure	0.25~0.4 MPa	0.25~0.4 MPa	0.25~0.4 MPa	0.25~0.4 MPa
Inlet Size	DN100mm	DN125mm	DN150mm	DN150mm
Outlet Size	DN125mm	DN150mm	DN200mm	DN200mm
Separation Point	15μm~44μm	15μm~44μm	15μm~44μm	15μm~44μm
Bottom Shaker Model	TRZS60/N/A	TRZS60/N/A	TRZS752/N/A	TRZS703/N/A
Dimension (L×W×H)	1510×1160×2000mm	1510×1360×2250mm	1835×1230×1810mm	2770×1785×1810mm
Weight	550kg	560kg / 580kg	1150kg	1950kg
Remark	All desilter models can be customized without bottom shaker

Why Choose TR Solids Control Desilter?

As a professional manufacturer of oilfield solids control equipment, TR Solids Control delivers reliable, high-quality desilter solutions designed for the most demanding drilling environments. Our drilling mud desilter units are rigorously tested to meet international standards, backed by our dedicated engineering and customer support teams.

From standard configurations to fully customized systems, we work with you to find the perfect 4 inch hydrocyclone desilter solution for your project. Contact us to learn more about our TRCN Series Desilter and how it can improve your solids control efficiency.
