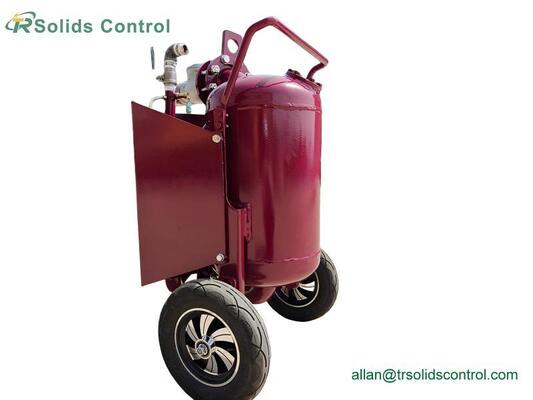

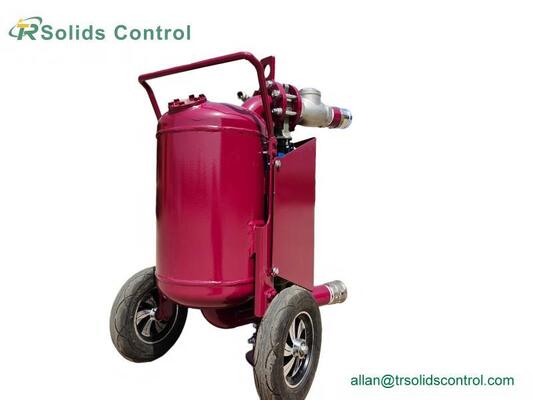

TRSP-20L 20m³/h Sludge Vacuum Pump with DN80 Inlet/Outlet and 50m Suction Distance for Solids Transfer

Sludge vacuum pumps are a type of pneumatic conveying equipment powered by compressed air, which are widely used in many industrial fields such as oil drilling, river dredging, and solid waste treatment.

The sludge vacuum pump (also known as a solids transfer pump or drill cuttings transfer pump) uses pneumatic technology to create a high vacuum for suction, then converts it to positive pressure for material discharge. Its workflow consists of three stages:

1. Suction Stage: After the pump starts, the pressure inside the pump chamber decreases, and the sludge enters the separation tank due to the pressure difference.
2. Separation Stage: The gas-solid mixture decelerates inside the tank, the sludge settles, and the gas is continuously extracted.
3. Discharge Stage: Accumulated sludge is discharged periodically or continuously through the discharge valve, completing the cyclic transport.

This equipment requires no electricity, only compressed air, and has excellent explosion-proof performance, making it suitable for hazardous operating environments such as offshore platforms and oil and gas fields.

• Fully pneumatic design, no electricity required, safe and explosion-proof.
• Vacuum level up to 550–800 kPa, suction distance up to 50 meters, discharge distance up to 1000 meters.
• Can transport solids with a particle size ≤70mm and a media solid content up to 80%.
• No sealing structure, strong self-cleaning ability, not easy to clog, simple maintenance.

• We offer high quality products at competitive price.
• Shortest delivery time.
• Flexible payment terms.
• Timely after-sale service.
• Most of our equipment can be replaceable with international brands.
• Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Customer's satisfaction is the highest pursuit of TR Solids Control.
