60/72 r/min Heavy Duty Mud Agitator

Detail Information

Product Description

Detail Information

Highlight:

heavy duty mud agitator

60 rpm mud agitator

solids control mud mixer

Product Description

60/72 r/min Heavy Duty Mud Agitator

This heavy-duty mud agitator, operating at 60/72 r/min, is a core piece of solids control equipment engineered for oil and gas drilling operations. Equipped with an explosion-proof motor and high-torque reducer, it delivers consistent, powerful mixing to keep drilling fluid uniformly suspended, effectively preventing solid particles from settling in mud tanks. Built for harsh field conditions, it ensures stable mud performance, supports efficient wellbore cleaning, and is fully compatible with various drilling mud systems, making it an essential solution for reliable, heavy-duty mud management in onshore and offshore drilling projects.

Product Features & Advantages

- The gearbox adopts worm and gear structure, featuring better scuffing resistance and higher reliability.
- The motor and gearbox are connected via coupling or directly, ensuring more stable agitation speed.
- Excellent heat exchange performance for faster cooling.
- Low noise operation.
- Customizable shaft and blades.
- Highly durable, easy to install, operate and maintain.

- Suitable for a wide range of working conditions.

Technical Specification Sheet

Model	Motro Power	Impeller Speed	Impeller Diameter	Impeller Qty	Explosion-proof Standard	Weight	Dimensions
TRJBQ3	3kw	60/72r/min	600mm	1	ExdllBt4/IECEX/A-TEX	190kg	909×525×527mm
TRJBQ5.5	5.5kw	60/72r/min	600mm	1	ExdllBt4/IECEX/A-TEX	250kg	1072×610×588mm
TRJBQ7.5	7.5kw	60/72r/min	650mm	2	ExdllBt4/IECEX/A-TEX	380kg	1157×670×607mm
TRJBQ11	11kw	60/72r/min	800mm	2	ExdllBt4/IECEX/A-TEX	430kg	1297×740×692mm
TRJBQ15	15kw	60/72r/min	950mm	2	ExdllBt4/IECEX/A-TEX	480kg	1330×890×747mm
TRJBQ18.5	18.5kw	60/72r/min	1000mm	2	ExdllBt4/IECEX/A-TEX	740kg	1510×890×753mm
TRJBQ22	22kw	60/72r/min	1100mm	2	ExdllBt4/IECEX/A-TEX	780kg	1529×890×753mm

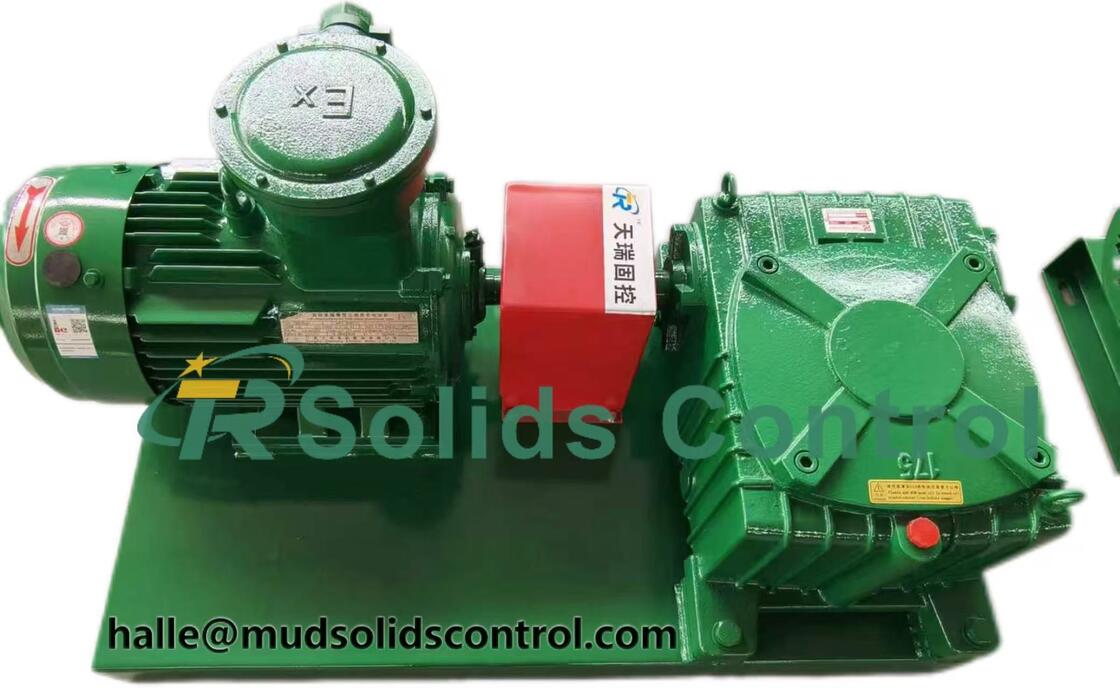

Actual Product Photos

60/72 r/min Heavy Duty Mud Agitator 0
