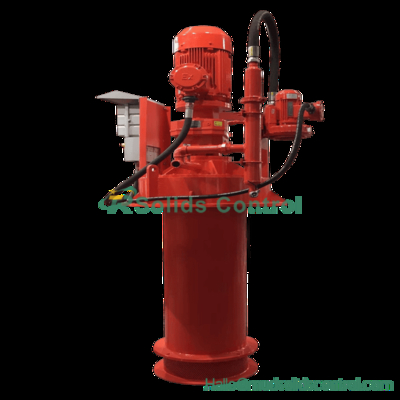

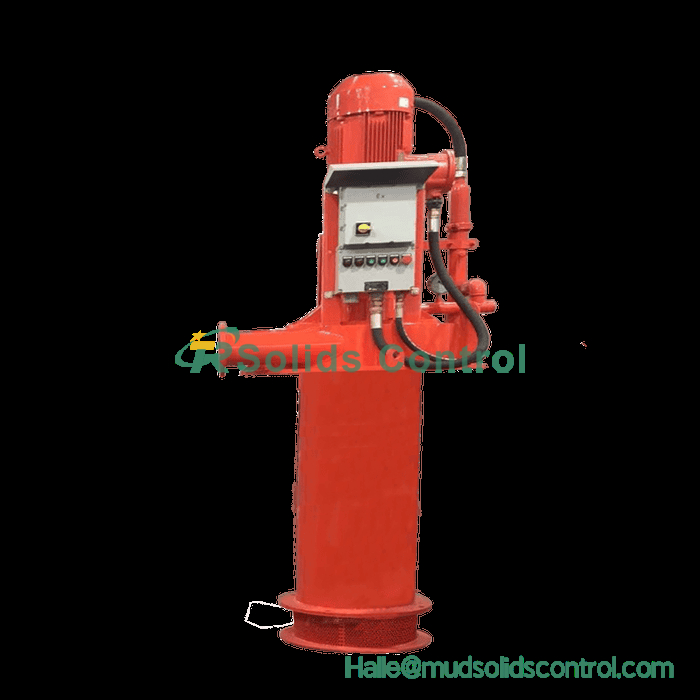

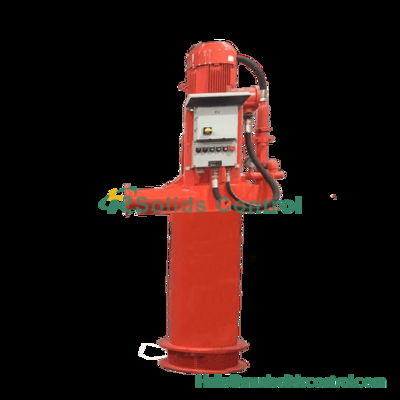

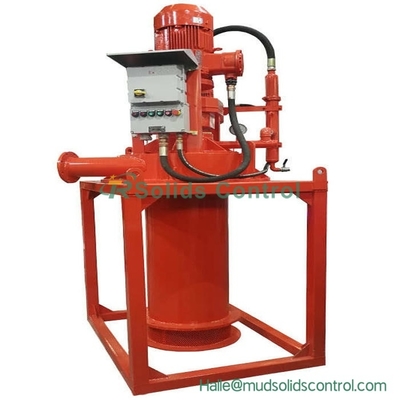

TRLCQ 300 Centrifugal Degasser | Efficient treatment of 300m³/h slurry

TRLCQ 300 Centrifugal Degasser | Efficient treatment of 300m³/h slurry

Centrifugal degasser is one of the key equipment in the solid-phase control system of drilling fluid, and belongs to the special equipment for gas treatment in the four-stage solid-controlled purification stage. Its main mission is not to remove solid particles, but to efficiently and quickly remove harmful gases invading from drilling fluid, so as to restore drilling fluid density, stabilize mud performance, and ensure the safety and efficiency of drilling operations.

Features and Benefits

✅Using pressurized exhaust, high exhaust efficiency.

✅Small footprint, easy to use and maintenance

✅The filter screen and impeller are welded in stainless steel and are highly corrosion resistant.

✅Electrical components are made from Schneider or Siemens, with stable performance.

Technical Specifications

Advantage

✅High treatment efficiency: It can handle 100% of the slurry circulation and the degassing efficiency can reach more than 95%.

✅Deep degassing: It can not only remove free gas, but also effectively remove gas dissolved in the drilling fluid.

✅Adaptable: Handles a wide range of fluids, from clean water to high-viscosity drilling fluids, and can handle sudden atmospheric intrusions.

✅Maintains mud properties: The degassing process does not alter the original chemistry of the drilling fluid

Operating principle

The drilling fluid is sucked into the degassing cylinder by the impeller.

At the liquid level above the gas immersion drilling fluid, a column liquid layer with an inverted cone cavity is formed in the middle, and the mud is removed through the drainage opening of the drainage cavity.

During the process of the impeller rotation, the bubbles burst, the gas overflowed the liquid level, and finally concentrated in the inverted cone cavity due to the small density.

The pressurization unit passes the gas through the narrow channel between the air separation disc and the air separation ring into the exhaust cavity .

lt then passes through the airflow pipe and the braided hose, enters the pressurization unit from the suction port of the pressurization device, and finally is discharged from the discharge outlet by the pressurization device

Application

• Oil/gas drilling: Deal with gas-intrusive mud when drilling into oil and gas formations.

• Shale gas/coalbed methane development: Solve the problem of gas separation in drilling in high-pressure gas reservoirs.

• Geothermal drilling: Separating associated gases in geothermal fluids.

• Oil testing and workover operations: Handling gases in backflow fluids to improve fluid recovery efficiency.

• Chemical environmental protection: pretreatment and gas recovery of gaseous industrial wastewater.

Certifications

• API & ISO 9001 Certified – Ensures compliance with global industry standards.

• Explosion-Proof Standards – Safe operation in hazardous zones.
