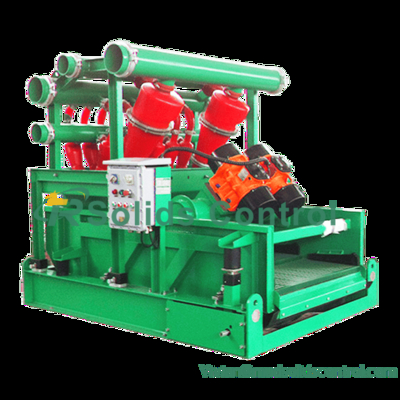

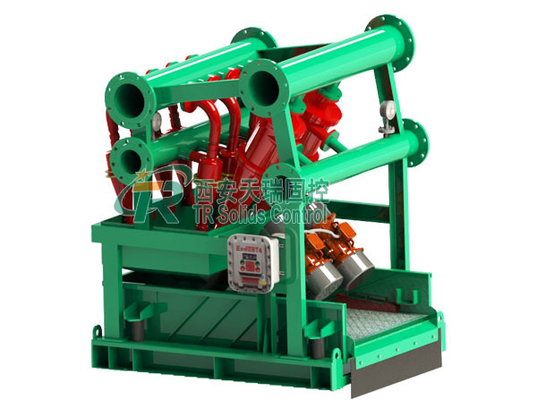

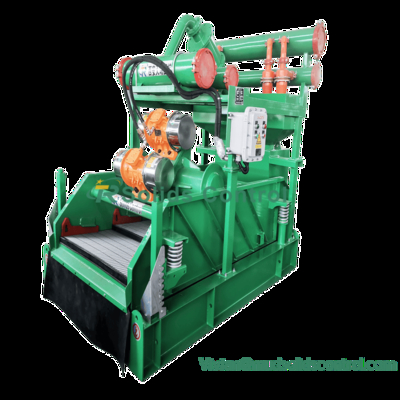

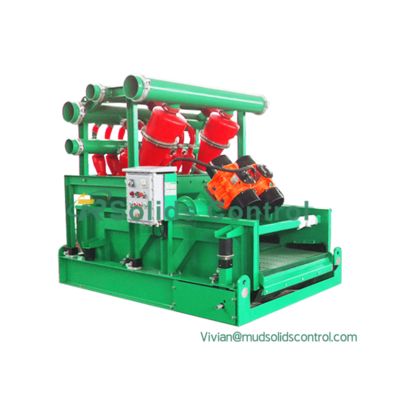

TRQJ250*3S-100*20N Solids Control Mud Cleaner 320m³/h High-Capacity Multi-Stage Purification

TRQJ250*3S-100*20N Solids Control Mud Cleaner – High-Capacity Multi-Stage Purification for Demanding Drilling

Product Description

The TRQJ250*3S-100*20N Solids Control Mud Cleaner is a heavy-duty, next-generation solids separation system designed for large-scale drilling and construction projects. As an integrated three-in-one solution, it combines the functions of a desander, desilter, and underflow shale shaker, delivering superior solids control performance while minimizing site footprint and operating costs.

Equipped with three 10-inch desander cones and twenty 4-inch desilter cones, supported by a high-capacity underflow shaker, this unit ensures efficient removal of both sand-sized solids and ultra-fine particles down to 15–25 μm. By preserving valuable barite and liquid phases in weighted mud, it reduces mud losses, extends the service life of downstream equipment, and enhances drilling fluid stability.

Engineered for oil & gas drilling, geothermal wells, HDD, CBM, tunneling, piling, and mining projects, the TRQJ250*3S-100*20N is built for continuous heavy-duty operation in the harshest environments, offering reliability, adaptability, and long-term value.

Features & Benefits

✔ Integrated Multi-Stage Design – Combines desander, desilter, and shaker functions on a single skid, saving space and simplifying rig installation.

✔ High-Capacity Hydrocyclones – Fitted with 3 × 10-inch desanders and 20 × 4-inch desilters, constructed from polyurethane or high-chromium cast iron lined with polyurethane for maximum wear resistance.

✔ Reinforced Shaker Box – Manufactured from high-manganese alloy steel, ensuring durability and superior structural strength.

✔ Premium Vibration Motors – Powered by globally trusted Martin or OLI motors, delivering strong, stable, and low-noise operation.

✔ Corrosion & Wear Resistance – Entire shaker box undergoes heat treatment and anti-corrosion surface treatment for long-lasting performance.

✔ Adjustable G-Force Excitation – Vibration intensity can be fine-tuned to handle high-viscosity and high-density drilling muds.

✔ Flexible Screen Installation – Supports multiple screen fixing methods including wedge block, clamping, and plate tensioning.

✔ Reliable Electrical System – Outfitted with Schneider or Siemens components for safe, stable, and efficient operation.

Technical Specifications

Technical Advantages

✔ Superior Separation Precision – Effectively separates solids down to 15–25 μm, ensuring cleaner drilling fluids compared to conventional equipment.

✔ Optimized Energy Use – Streamlined flow design reduces turbulence and pressure loss, lowering power consumption.

✔ Barite & Fluid Preservation – Recovers valuable liquid and barite content, reducing fluid replenishment costs.

✔ Easy Maintenance – Modular layout enables rapid servicing of cones, screens, and motors.

✔ Scalable & Customizable – Configurations available with tailored hydrocyclone numbers, screen meshes, and PLC automation.

✔ Extended Service Life – Built with high-strength alloys and polyurethane materials to withstand abrasive drilling conditions.

Applications

✔ Oil & Gas Drilling – Ensures stable mud properties, protecting centrifuges, pumps, and mud tanks.

✔ HDD & Trenchless Drilling – Maximizes fluid recovery in trenchless pipeline and utility installations.

✔ Geothermal & CBM Wells – Efficiently handles solids-heavy drilling mud systems.

✔ Mining & Tunneling – Provides slurry purification for TBM projects, diaphragm walls, and piling foundations.

✔ Environmental Engineering – Suitable for soil remediation, groundwater protection, and slurry waste treatment.

Advantages & Services

✔ Higher Cleaning Efficiency – Outperforms conventional standalone desanders/desilters in fine particle removal.

✔ Space-Saving Design – Compact structure reduces rig-site footprint while integrating three functions in one unit.

✔ Lower Operating Costs – Reduced mud loss, energy savings, and minimal downtime translate to significant cost efficiency.

✔ Flexible & Adaptable – Wide selection of hydrocyclone sizes, screen meshes, and vibration settings to meet diverse drilling conditions.

✔ Field-Proven Reliability – Rugged construction and globally trusted brand components ensure dependable performance across industries.

Why Construction Professionals Choose TRQJ250*3S-100*20N ?

✔ Unmatched Processing Capacity – With 3 desanders and 20 desilters, it is built for high-volume drilling operations.

✔ Cost-Effective Operation – Preserves barite, reduces mud losses, and minimizes replacement costs.

✔ Rugged Durability – Constructed with reinforced alloys, polyurethane, and anti-corrosion coatings for long-term field service.

✔ Tailored Configurations – Hydrocyclone layout, screen mesh sizes, and automation options available to meet unique project needs.

✔ Global Trust – Certified to API, ISO, and RoHS standards and proven in projects worldwide.

About TR SolidsControl

TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
