TRQJ250*2S-100*12N Solids Control Mud Cleaner 240m³/h High-Capacity Multi-Stage Purification

TRQJ250*2S-100*12N Solids Control Mud Cleaner – High-Capacity Multi-Stage Purification for Demanding Drilling

Product Description

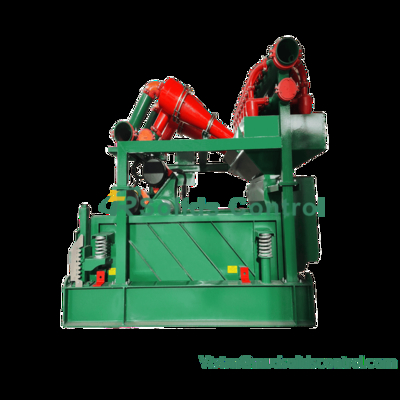

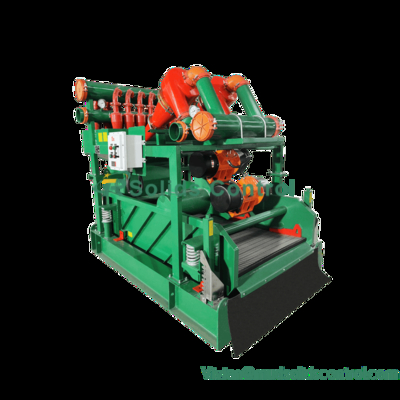

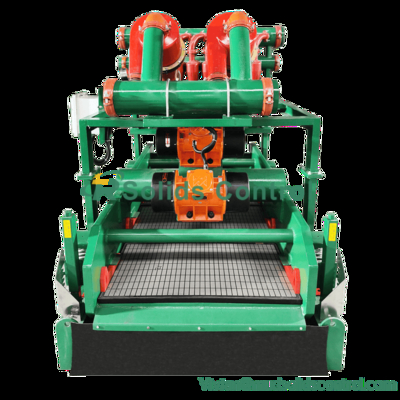

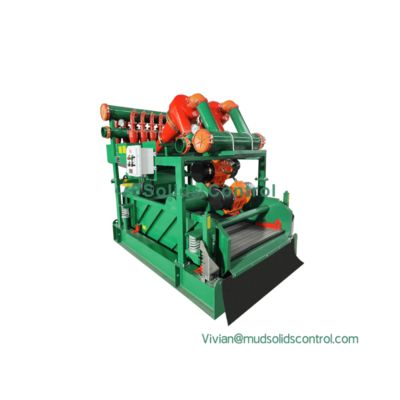

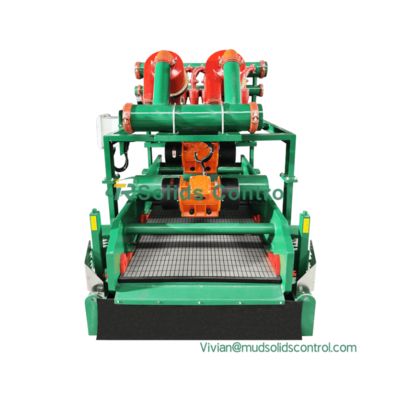

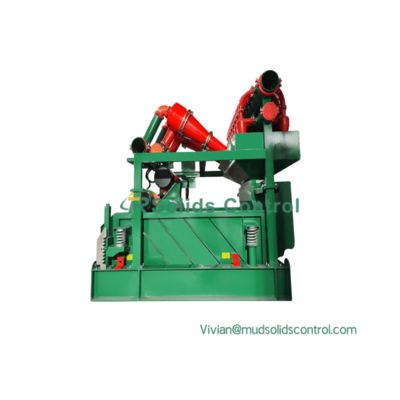

The TRQJ250*2S-100*12N Solids Control Mud Cleaner is a state-of-the-art solids separation unit developed for high-volume drilling and construction operations. Integrating a desander, desilter, and underflow shale shaker into one compact system, it provides an efficient, space-saving solution for multi-stage drilling fluid purification.

Equipped with two 10-inch desander cones and twelve 4-inch desilter cones, supported by a robust underflow shaker, this system efficiently removes both coarse sand particles and ultra-fine solids, ensuring drilling fluids remain clean and stable. By preserving valuable barite and liquid phases in weighted mud, it significantly reduces mud costs, minimizes equipment wear, and improves drilling performance.

Engineered for oil & gas drilling, geothermal wells, HDD, CBM, tunneling, and mining projects, the TRQJ250*2S-100*12N is built to withstand continuous heavy-duty operations, delivering reliability, cost-effectiveness, and long service life in the most challenging environments.

Features & Benefits

✔ All-in-One System – Combines desander, desilter, and shaker functions on a single skid for simplified installation and reduced rig footprint.

✔ High-Capacity Hydrocyclones – Fitted with two 10-inch desanders and twelve 4-inch desilters, constructed from polyurethane or high-chromium cast iron with polyurethane lining for superior abrasion resistance.

✔ Reinforced Shaker Structure – Built from high-manganese alloy steel, providing excellent strength and extended operational life.

✔ Premium Drive System – Powered by internationally recognized Martin or OLI vibration motors for high-efficiency, low-noise, and stable performance.

✔ Corrosion & Wear Resistance – Shaker box undergoes full heat treatment and anti-corrosion coating, ensuring reliable performance in harsh drilling environments.

✔ Customizable Vibration Intensity – Adjustable G-force excitation meets the demands of high-viscosity, high-density drilling fluids.

✔ Flexible Screen Installation – Options for wedge block, clamping, or plate tensioning ensure quick and secure screen changes.

✔ World-Class Electrical System – Equipped with Schneider or Siemens components for safe, reliable operation.

Technical Specifications

Technical Advantages

✔ High Separation Precision – Efficiently removes particles down to 15–25 μm, improving fluid quality beyond traditional sand traps.

✔ Optimized Energy Efficiency – Internal flow channels minimize turbulence and pressure loss, lowering energy consumption.

✔ Reduced Mud Loss – Maximizes drilling fluid recovery by preserving barite and liquid phases.

✔ Quick Maintenance Access – Modular design allows easy replacement of cones, motors, and shaker screens, reducing downtime.

✔ Flexible Configurations – Number of hydrocyclones, screen mesh sizes, and PLC automation can be tailored to project needs.

✔ Extended Service Life – High-strength alloy frames and premium polyurethane materials deliver long-term durability under abrasive conditions.

Applications

✔ Oil & Gas Drilling – Maintains mud weight and viscosity, protecting mud pumps, centrifuges, and tanks.

✔ HDD & Trenchless Drilling – Ensures efficient fluid recovery for underground utility and pipeline installation.

✔ Geothermal & CBM Wells – Effectively manages solid-heavy mud systems for stable, safe operations.

✔ Mining & Tunneling Projects – Provides reliable slurry purification for TBMs, diaphragm walls, and piling works.

✔ Environmental Engineering – Supports slurry management in soil remediation, groundwater protection, and waste treatment projects.

Advantages & Services

✔ Higher Cleaning Efficiency – Outperforms conventional standalone desanders/desilters in fine particle removal.

✔ Space-Saving Design – Compact structure reduces rig-site footprint while integrating three functions in one unit.

✔ Lower Operating Costs – Reduced mud loss, energy savings, and minimal downtime translate to significant cost efficiency.

✔ Flexible & Adaptable – Wide selection of hydrocyclone sizes, screen meshes, and vibration settings to meet diverse drilling conditions.

✔ Field-Proven Reliability – Rugged construction and globally trusted brand components ensure dependable performance across industries.

Why Construction Professionals Choose TRQJ250*2S-100*12N?

✔ High-Capacity Efficiency – Processes larger mud volumes while maintaining superior separation quality.

✔ Cost-Effective Operation – Preserves expensive barite and reduces mud replacement expenses.

✔ Heavy-Duty Durability – Built with reinforced alloys, premium polyurethane, and anti-corrosion coatings for long-term service.

✔ Custom-Engineered Solutions – Available with multiple cyclone configurations, screen mesh options, and PLC-based automation.

✔ Trusted Worldwide – Certified to international standards (API, ISO, RoHS) and proven in oilfield, tunneling, and mining applications.

About TR SolidsControl

TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
