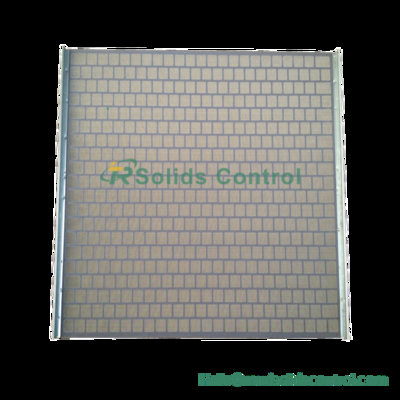

Achieve Maximum Efficiency with FIC500 20-325mesh Flat Shaker Screen for Mud Cleaning System

Name: Achieve Maximum Efficiency with FIC500 20-325mesh Flat Shaker Screen for Mud Cleaning System
Brand: Xian TianRui Petroleum Machinery Equipment Co., Ltd.
SKU: FIC500 Flat Shaker Screen
Price: 23,037.00 USD
Availability: InStock

Brand Name:	TR Solids Control
Model Number:	FIC500 Flat Shaker Screen
Price:	USD 275-45800 or Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,China

Certification:

API / ATEX / IEC / ISO9001

Size:

1050*695mm

Weight:

6 Kgs

Screen Layers:

2 Or 3 Layers

Mesh Count:

20-325mesh

Highlight:

FIC500 flat shaker screen

20-325mesh mud cleaning screen

solids control equipment screen

Product Description

Achieve Maximum Efficiency with FIC500 20-325mesh Flat Shaker Screen for Mud Cleaning System

Product Description

The Flat Shaker Screen is the core component of the vibrating screen, which realizes the particle size classification, solid-liquid separation or impurity filtration of materials through the grid structure of a specific pore size. It is widely used in mining, metallurgy, chemical, grain processing and environmental protection industries.

Advantage

1. Long service life

2. Good separation effect

3. Easy to disassemble and replace

4. Efficient screening ability

5. Anti-blockage hole design

Technical Specifications

Product name	Drilling waste management FIC500 flat Shale Shaker Screen for oil filtration
Wire mesh material	SS304 SS316 or customized as customers demands
Size	1050*695mm
Weight	6 kgs
Screen layers	2 or 3 layers
Mesh count	20-325mesh
Quality standard	compliant with API RP13C Standard
Remarks:	Packaging Details:2 pieces one carton, 20 pcs one wooden case. Out size of the wooden case: 12507801000mm

Application

• Ore classification: particle size screening of coal and iron ore (multi-layer mesh combination)

• Grain screening: remove straw and deflated grains from wheat and soybeans

• Chemical filtration: catalyst particle recovery, powder impurity removal

• Environmentally friendly dewatering: sludge dewatering screen (polyurethane)

About TR Solids Control

TR SolidsControl is a leading manufacturer of drilling fluid equipment, supplying reliable solutions to oil, gas, and trenchless industries worldwide. With a strong focus on innovation and quality, we ensure top-tier performance for all your drilling needs
