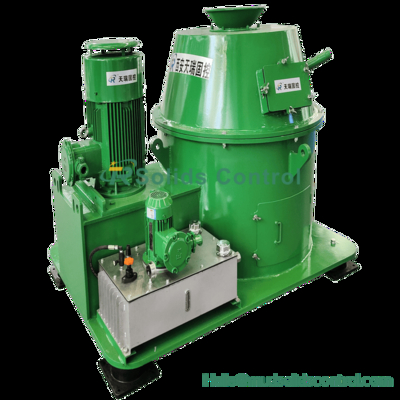

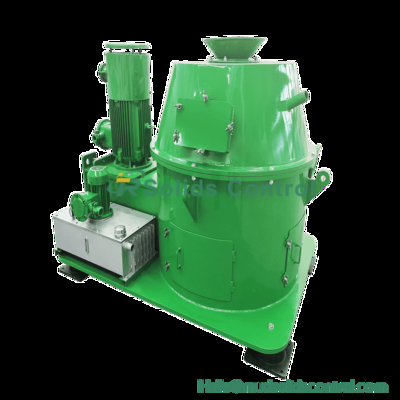

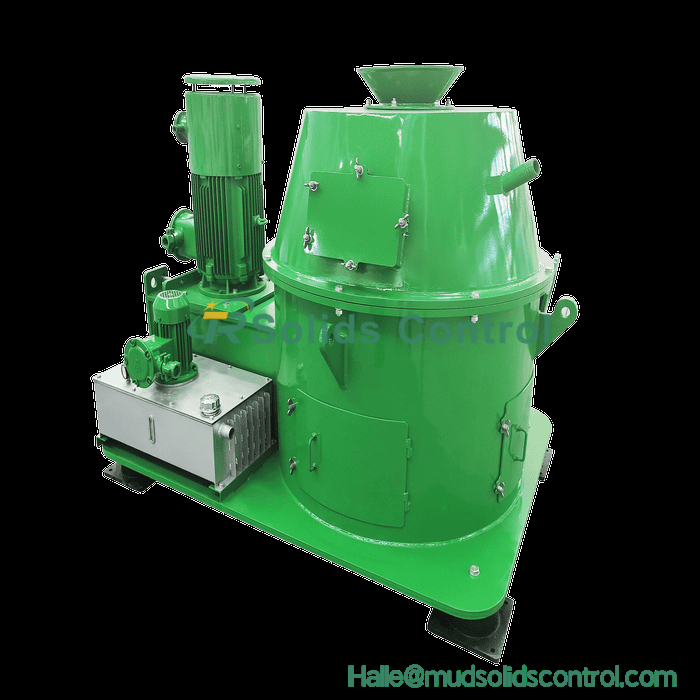

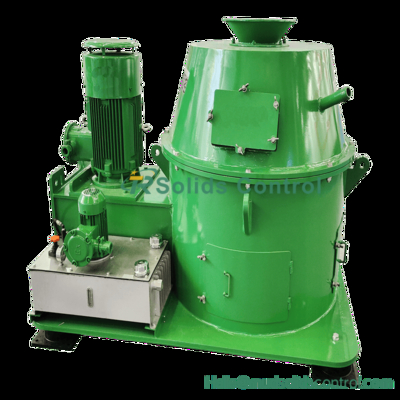

TRCD Series Vertical Drill Cuttings Dryer

TRCD Series Vertical Drill Cuttings Dryer

Product Description

Vertical Cutting Dryer is a key equipment of the solid control system. It is mainly used to separate the solid particles in the mixture of drilling mud, industrial waste slurry and other mixtures from liquids, realize solid-phase drying treatment, reduce waste emissions and recover liquid components.

Advantage

✔ Efficient Dewatering: The treated solid phase moisture content is low, reducing transportation and environmental costs.

✔ Energy-saving design: Frequency conversion controls the speed, adapts to different material characteristics, and the energy consumption is 30%-50% lower than that of traditional filter presses.

✔ Corrosion Resistance: The bowl and spiral blades are made of stainless steel or polymer materials, making them resistant to wear and corrosion.

✔ Automated operation: PLC control system monitors parameters such as rotation speed, temperature, and feed volume in real time.

✔ Environmental Compliance: Comply with drilling waste treatment standards such as API RP 13C, reducing the risk of environmental pollution.

Technical Specifications

Features and Benefits

1. The rotation speed is up to 900rpm, which can form a separation factor of 420G, effectively separating the liquid in the drill chips.

2. The discharge scraper is made of high chrome cast iron and has a long service life.

3. The assembly of high-pressure air knife can effectively prevent clogging of screen blue.

4. Each replaceable selected component has undergone dynamic balance test to meet the overall balance of the replacement component.

5. Independent oil circuit cooling system, equipped with a scientific oil tank cooling system, effectively meeting the use requirements in high temperature environments.

Application

• Oil drilling: Treat oil-based/water-based drilling mud, recover base oil, and dry drilling cuttings.

• Environmental protection field: dehydration reduction of municipal sludge and industrial sludge (such as chemical, printing and dyeing).

• Mining: Solid-liquid separation of tailings and coal sludge.

• Food and pharmaceutical: dehydration of fermentation residues, starches and other materials.

Certifications

• API & ISO 9001 Certified – Ensures compliance with global industry standards.

• Exlosion-Proof Standards – Safe operation in hazardous zones.

 About TR Solids Control

TR SolidsControl is a leading manufacturer of drilling fluid equipment, supplying reliable solutions to oil, gas, and trenchless industries worldwide. With a strong focus on innovation and quality, we ensure top-tier performance for all your drilling needs
