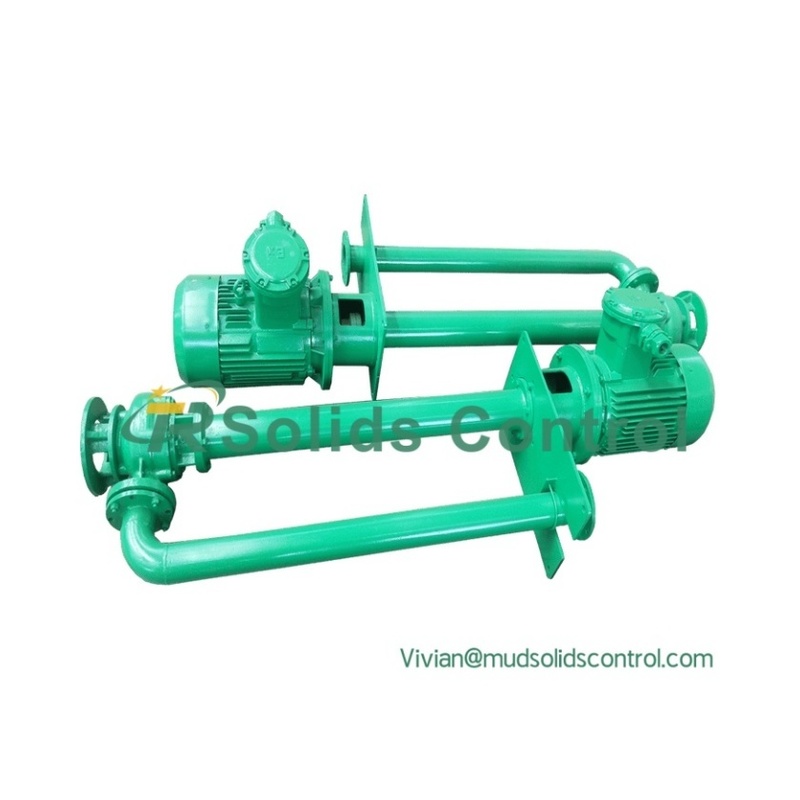

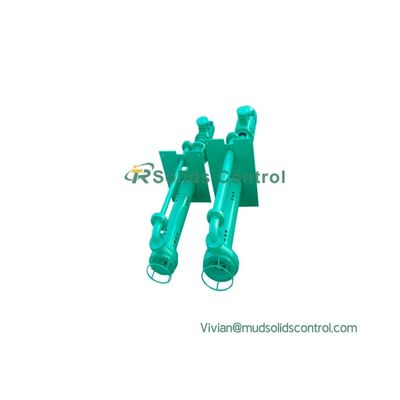

TRYZ100YZ120-60 120m3/H Efficiency Submersible Slurry Pump Reliable Solution Solid Control Systems

TRYZ Series High-Efficiency Submersible Slurry Pump – Reliable Solution for Solid Control Systems

Product Description

TRYZ series submersible slurry pump mainly supply mud for shale shaker and decanter centrifuge from the mud pit. The structure is single sucking cantilever type. It uses bearing seat, supporting seat and pipe to connect the hydraulic parts of pump, and liquid is discharged from the hydraulic hose assembly. Pump's impeller is semi-open type, and it's equipped with mixing bladed in the stretch part of impeller inlet. The main features of our submersible slurry pump are to have enough rigidity in submerged parts of the shaft, and don't set bearing and shaft seals between the impeller and pump case, and could convey the medium containing solid particles with larger density. The standard length of pump inserting liquid is 1.3 meter,and can be equipped with a suction pipe if required. We operate shaft seals by inserting the pump into liquid. The transmission works by vertical motor mounted on the bearing base, connected by coupling and the pump.

Key Features & Benefits

✔ Semi-open impeller – Resists clogging and handles high-density solids (up to 60% concentration).

✔ Corrosion & abrasion-resistant materials – Stainless steel (SS304/SS316), high-chrome alloy, or polyurethane lining options.

✔ Rigid submerged shaft – Reinforced for stability in high-torque conditions.

✔ Adjustable submergence length – Adapts to varying sump depths.

✔ Compact footprint – Saves space in confined industrial setups.

✔ Motor coupling connection – Ensures smooth power transmission with minimal vibration.

✔ No submerged bearings – Reduces wear and maintenance costs.

✔ High flow capacity – Optimized for drilling mud, sludge, and abrasive slurries.

✔ Sealed motor protection – Prevents liquid ingress for extended motor life.

Technical Specifications

Applications

✔ Oil & Gas: Mud transfer, solids control in drilling fluids, and centrifuge feed.

✔ Mining & Mineral Processing: Tailings transport, abrasive slurry pumping.

✔ Wastewater Treatment: Sludge removal, sedimentation tank cleaning.

✔ Chemical & Pharmaceutical: Handling corrosive and particle-laden fluids.

✔ Construction & Cement: Pumping mortar, grout, and cement slurries.

Why Choose the TRYZ Series?

✔ Superior Solids Handling – Engineered for high abrasion resistance.

✔ Low Maintenance – No submerged bearings mean fewer breakdowns.

✔ Energy Efficient – Optimized impeller design reduces power consumption.

✔ Versatile Customization – Tailored for depth, flow, and material requirements.

About TR SolidsControl

TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
