30T/H-50T/H Solid Control System With CD930C Vertical Cutting Dryer

30-50T/h Solid Control System with High - Performing CD930C Vertical Cuttings Dryer

High Standard Solid Control System CD930C Vertical Cuttings Dryer API Certificate

Main Introduction

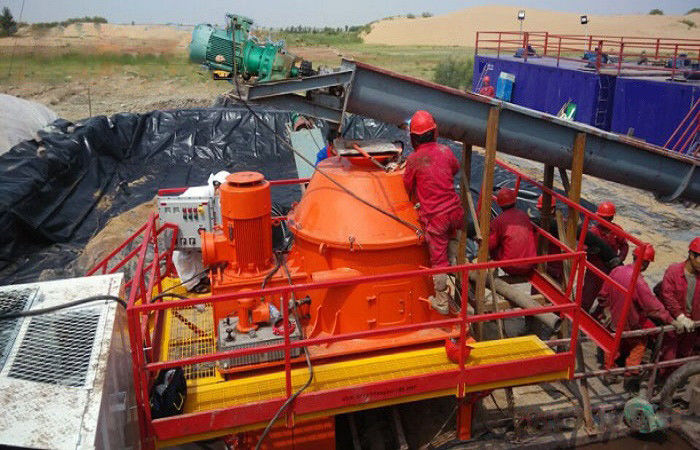

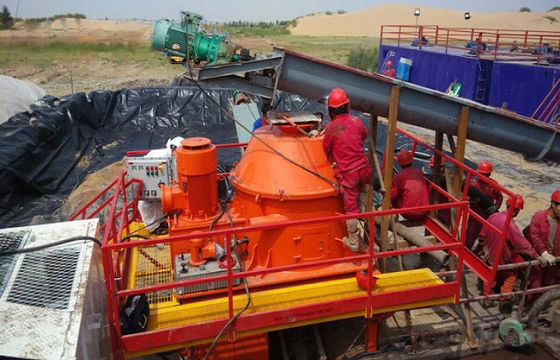

TR Vertical Cuttings Dryer uses centrifugal force to dry drilled solids in oil or synthetic base fluids. A stainless steel screen bowl traps“wet” solids and accelerates them up 900RPM with G force up to 420. Liquid is forced through the screen bowl openings, while “dry” solids are extracted by the angled flights attached to the cone, which rotate slightly slower than the bowl. Tungsten carbide protects the flights from abrasive solids and ensures long operational life. This aids in maintaining a constant gap between the scroll and screen bowl, which is crucial for proper operation. TR vertical cuttings dryer has been done strict balance testing for all major rotary components to minimize vibration & noisy.

Vertical cutting dryer is used to do further separation for cuttings to recover valuable drilling fluids, dry solids discharge, clean return fluid and reduce mud loss. Drilling cuttings discharged by shale shaker, desander, desilters (or mud cleaner) can be fed into the dryer’s hopper and spaced widely to the inner screens. In this process we could achieve drying and separating efficiency.

Why Choose TR Vertical Cutting Dryer?

• Discharging scraper is made from high chromium cast iron, with long service life.
• Independent oil cooling system, matched with scientific oil tank cooling system, making it meet operating requirement in high temperature environment;
• Efficient capacity and advanced design;
• Assembled with air knife, making it prevent basket from blocking;
• Every changeable selected parts pass dynamic balance test, meeting the balance of the complete machine;
• The highest rotary speed is 900 rpm. It could form 420 G separation factor, and separate the fluid from drilling waste effectively.

Parameters of Our Vertical Cutting Dryer


TR Solids Control is a well-known manufacturer of vertical cutting dryer in China for over 10 years. Our vertical cutting dryers have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices. We are welcome your inquiry and consulting!

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
