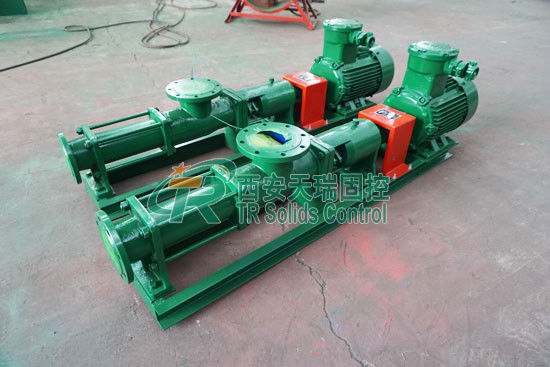

TRG20A-055 Screw Pump 20m3/H Flow And 5.5kw Power For Drilling Operations

Name: TRG20A-055 Screw Pump 20m3/H Flow And 5.5kw Power For Drilling Operations
Brand: Xian TianRui Petroleum Machinery Equipment Co., Ltd.
SKU: TRG20A - 055
Price: 23,037.00 USD
Availability: InStock

Brand Name:	TR Solids Control
Model Number:	TRG20A - 055
Price:	USD 275-45800 or Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,China

Certification:

API Certificate, ISO Certificate

Flow Rate:

20m³/h

Pressure:

0.3Mpa

Power:

5.5kw

Inlet:

Outlet:

Ex Standard:

ExdIIBt4/IECEX/A-TEX

Highlight:

TRG20A-055 Screw Pump

0m3/H Flow Screw Pump

Product Description

TRG20A - 055 Screw Pump: Exceptionally Reliable with 20m³/h Flow and 5.5kw Power for Drilling Operations

Horizontal Directional Drilling Fluids 70m3/h Screw Pump with Short delivery

Introduction

The TRG series screw pump stands out in the realm of industrial pumping solutions, especially in the drilling sector. Its flow rate is remarkably smooth, accompanied by minimal pressure pulsation, which ensures stable operations. With a strong self - priming ability, it can start up easily without external assistance. The pump operates with low noise, high efficiency, and has an impressively long service life, guaranteeing reliable performance over extended periods.

One of its most remarkable features is that during medium conveyance, it does not generate eddy currents and is not affected by the medium's viscosity. This makes it the perfect choice for various applications, particularly in drilling waste management. In the context of drilling fluid handling, the TRG screw pump is the go - to option for feeding drilling fluids to decanter centrifuges. Unlike typical sewage or trash pumps, it transfers mud to the centrifuge without shearing or stirring the drilling fluids, preserving their integrity. Additionally, it plays a crucial role in transporting drilling waste and wet mud cuttings, making it an essential component in any drilling waste management system.

Application

TRG series Screw Pump is widely used in oil & gas drilling, tunnelling construction, trenchless HDD, city bored piling, Water Drilling, environment protection, shipbuilding industry, brewing Industry, Coal Bed Gas Solids Control System, Drilling Waste Management, Oil Mud Seperation, Oil Sludge Dewatering Systems etc.

Features of TRGSeries Shear Pump

1. High suction height, low noise. No leakage, no temperature rise when conveying liquid.
2. Less accessories, compact structure and easy maintenance.
3. Rotor and stator are vulnerable parts. They are easy to replace.

4. Wide application range. Can convery all flowable media.

5. Stable flow rate and pressure. No pulse.

6. Shaft of the pump is made from stainless steel.

7. Large working speed range. Flow and pressure can be adjustable.

8. Long operational life with reliable performance.

Technical Data of TRG Series Screw Pump

Model	Flow Rate	Pressure	Power	Inlet (Inch)	Outlet (Inch)	Ex Standard	Weight (Kg)	Dimension
TRG10A-040	10m³/h	0.3Mpa	4kw	3	3	ExdIIBt4/IECEX/A-TEX	245	2245×320×550mm
TRG20A-055	20m³/h		5.5kw	3	3		323	2450×340×562mm
TRG30A-075	30m³/h		7.5kw	4	4		386	2761×370×600mm
TRG40A-110	40m³/h		11kw	5	5		454	3270×370×665mm
TRG50A-110	50m³/h		11kw	5	5		608	3790×400×782mm
TRG60A-150	60m³/h		15kw	5	5		649	3322×550×740mm
TRG70A-220	70m³/h		22kw	6	6		875	3740×420×785mm
TRG80A-220	80m³/h		22kw	6	6		875	3740×420×785mm
TRG90A-220	90m³/h		22kw	6	6		875	3740×420×785mm

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
