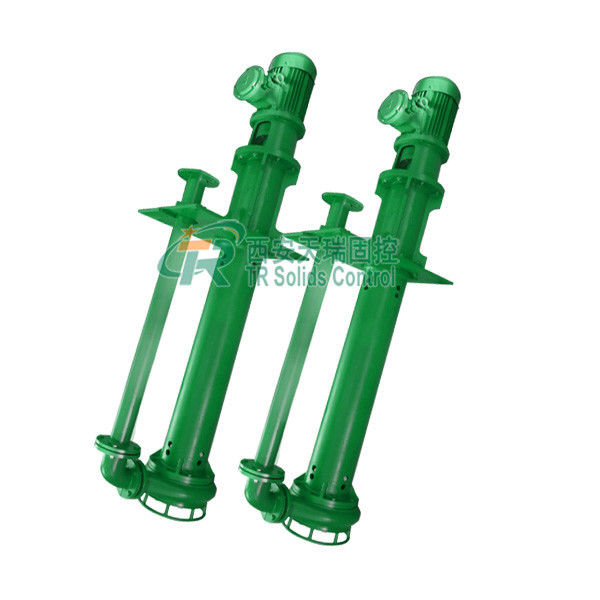

120m3/h Submersible Slurry Pump Solids Control Equipment 100YZ120-60YZ

Name: 120m3/h Submersible Slurry Pump Solids Control Equipment 100YZ120-60YZ
Brand: Xian TianRui Petroleum Machinery Equipment Co., Ltd.
SKU: 100YZ120 - 60YZ
Price: 23,037.00 USD
Availability: InStock

Brand Name:	TR Solids Control
Model Number:	100YZ120 - 60YZ
Price:	USD 275-45800 or Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an,China

Certification:

API Certificate, ISO Certificate

Highlight:

120m3/h Submersible Slurry Pump

Solids Control Submersible Slurry Pump

Product Description

Discover the High - Quality 100YZ120 - 60YZ 120m³/h Series Submersible Slurry PumpHigh Quality Vertical Submersible Slurry Pump for Solid Control System Product Introduction

1. Product Overview

The submersible slurry pump is designed to extract viscous and dirty fluids from drilling fluids. In the oilfield industry, it commonly supplies mud fluid to the decanter centrifuge. In other sectors, it can work in tandem with desanders and shale shakers.

Our submersible slurry pump is composed of components such as an impeller, pump case, pump shaft, bearing, drive power, support frame, coupler, shaft sleeve, and shaft seal. Typically, an electric motor drives the pump, with popular flow rates ranging from 25m³/h to 200m³/h.

2. Applications

The YZ series submersible pump is widely used in various fields. In environmental protection, new building materials, coal washing, municipal projects, thermal power generation, gas coking plants, refineries, mining, papermaking, cement plants, food factories, and other industries, it pumps thick oil, oil residue, dirty oil, mud, mortar, flowing sand, and other liquids. In the chemical and pharmaceutical industries, it is used to pump liquids containing silt materials and corrosive liquids.

Features of TR Submersible Slurry Pump

Enough rigidity in submerged parts of the shaft.
Submerge length can be customizable.
Impeller is semi-open type.
Could convey the medium containing solid particles with larger density.
Compact design covers small space.
Vertical motor is installed on motor base, connecting the pump by coupling.
No bearing between impeller and pump for less repair cost.

Technical Data of YZ Series Submersible Slurry Pump

Model	Flow	Lift	Speed	Motor
50YZ25-12	25m³/h	12m	1430r/min	3kw
50YZ20-18	20m³/h	18m	1430r/min	4kw
80YZ50-20B	40m³/h	16m	1440r/min	5.5kw
80YZ50-20	60m³/h	17.5m	1440r/min	7.5kw
80YZ80-20	90m³/h	22m	1460r/min	11kw
100YZ100-30A	75m³/h	30m	1470r/min	18.5kw
100YZ100-30	60m³/h	36m	1470r/min	22kw
100YZ160-38B	82m³/h	33m	1480r/min	30kw
100YZ120-60	120m³/h	40m	1480r/min	45kw
150YZ250-40A	135m³/h	35m	1480r/min	55kw
150YZ250-40B	120m³/h	28m	1480r/min	37kw

120m3/h Submersible Slurry Pump Solids Control Equipment 100YZ120-60YZ 0

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
