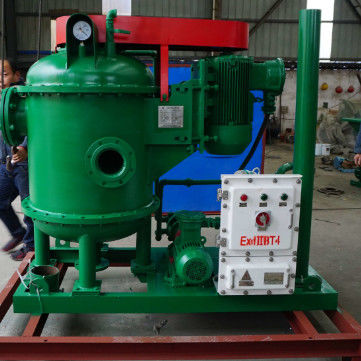

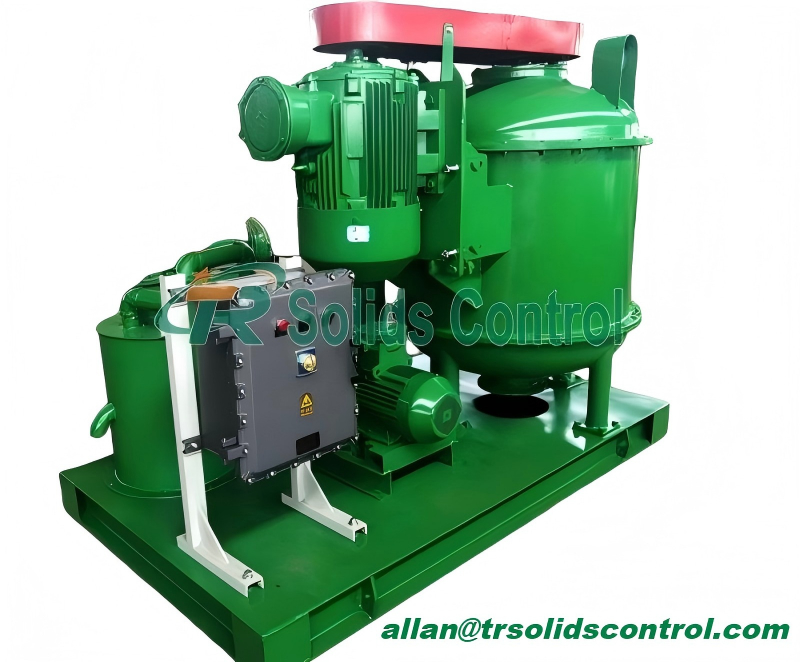

TRZCQ270 Vacuum Degasser 270m3/H Exd II Bt4 Mud Degasser 700mm Body Dia

Product Introduction

Main Application

TRZCQ series drilling vacuum degasser is used in these industries: Coal Bed Gas Solids Control System, Oil and Gas Drilling, Drilling Waste Management, Water Drilling, Oil Sludge Dewatering Systems, Trenchless HDD & Tunnelling, Oil Mud Seperation, Bored Piling etc. We will provide our clients high quality products with most reasonable price, at the same time we also sincerely offer the high level after sales service for any home or abroad clients.

Advantages of TR Vacuum Degasser

1. Belt drive makes it avoid the complexity of the reducing gear, and guarantee the long time working time without trouble.
2. Scientific and reasonable design for structure. It can achieve effective separation of gas and liquid, filter out impurities, and ensure exhaust pipe is always clear;
3. Vacuum degasser makes mud throw towards barrel wall at a high speed by rotor. Bubbles in the mud are broken thoroughly, making the vacuum degasser have high degassing efficiency up to 95%.
4. There is a gas-water separator in vacuum degasser, which can avoid water and gas are discharged at the same time, and also can supply water to the vacuum pump, saving water and environment-friendly.
5. Water ring type of vacuum pump work is always at a constant temperature state, suitable for flammable and explosive gas suction.

Technical Parameters of TR Vacuum Degasser

Operational Theory

TR Vacuum degasser utilize negative pressure by vacuum pump to withdraw entrained gases from the mud. In order for this to work, mud is pumped through a venturi, which develops a negative pressure in the vessel by vacuum pump, thus sucking mud into the unit. The choice between horizontally- or vertically-mounted units is typically based on the footprint requirements of the specific rig.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
