Product Description

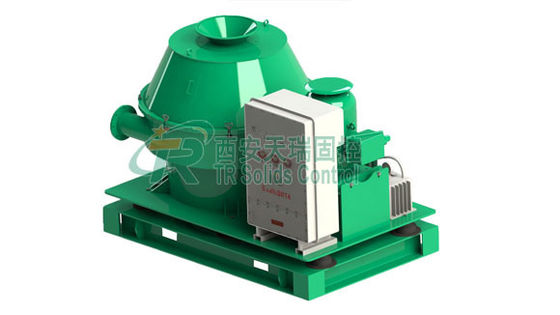

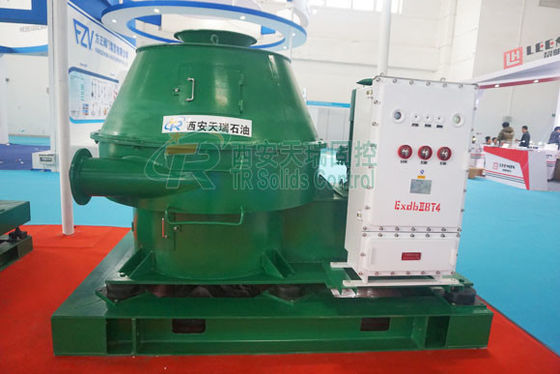

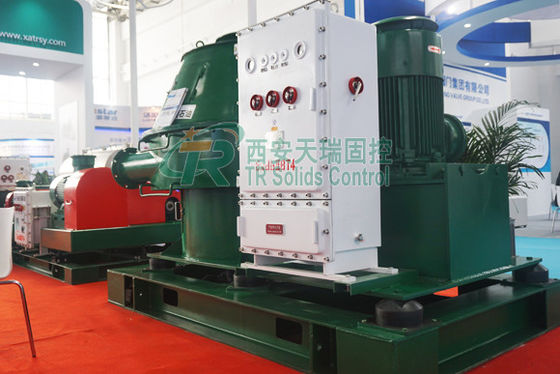

The Vertical Cutting Dryer is a critical solution for effective drilling waste management. Designed to recover valuable drilling fluids and reduce waste disposal costs, this dryer employs high-speed rotation and advanced liquid–solid separation technology. It is ideal for oil-based and synthetic-based mud drilling operations. The unit efficiently dries drill cuttings, recovers up to 95% of drilling fluids, and improves overall operational efficiency.

Attributes

Model: TRCD930 Series
Processing Capacity: 30–50 T/h
Basket Maximum Diameter: 930 mm
Basket Gap: 0.25–0.5 mm
Rotary Speed: 900 r/min (VFD model: 0–900 r/min)
Air Knife Pressure: 0.69 MPa
Air Supply Volume: 1.8 m³/min
Fuel Tank Volume: 60 L
Main Motor Power: 55 kW
Oil Pump Power: 0.55 kW
Weight: 5900–6000 kg
Application: Drilling waste management, drilling fluid recovery, oil-based and synthetic mud treatment

Technical Specifications

Key Features

• High-Speed Drying Efficiency: Recovers up to 95% of drilling fluids, significantly reducing waste volume and lowering operational costs.
• Variable Speed Control: The VFD model offers adjustable rotation speed (0–900 r/min) for optimal performance across different drilling conditions.
• Optimized Basket Design: The 930 mm stainless steel basket with a 0.25–0.5 mm gap ensures maximum separation efficiency and consistent drying performance.
• Integrated Air Knife System: Uses high-pressure air (0.69 MPa) to prevent screen blockages, maintaining uninterrupted operation.
• Heavy-Duty Construction: Built with wear-resistant materials for extended service life in harsh drilling environments.
• Low Maintenance & Energy Efficient: Equipped with a robust 55 kW main motor and a 0.55 kW oil pump, ensuring stable and energy-efficient operation.

Applications

• Oil & Gas Drilling: Provides effective separation of drilling waste, protecting downstream equipment and enhancing mud recovery.
• Oil-Based and Synthetic Mud Treatment: Maximizes fluid recovery while minimizing disposal costs in challenging drilling operations.
• Onshore & Offshore Drilling Operations: Suitable for high-performance solids control on both land rigs and offshore platforms.
• Environmental Compliance: Reduces waste volume and supports environmentally responsible drilling practices.

Certifications

API & ISO 9001 Certified – Complies with international safety and quality standards.
Explosion-Proof Standards – Engineered for safe operation in hazardous drilling environments.

FAQ
Q: What is the primary function of the Vertical Cutting Dryer?
A: It separates drilling fluids from drill cuttings, allowing for fluid recovery and reducing waste disposal costs.

Q: What processing capacity does the TRCD930 Series offer?
A: The dryer can handle 30–50 T/h, making it suitable for large-scale drilling operations.

Q: How does the VFD model enhance performance?
A: The VFD model allows for variable rotation speeds (0–900 r/min), optimizing the drying process under various drilling conditions.

Q: What maintenance is required?
A: Regular inspection of the basket, lubrication of motors, and monitoring of the air knife system are recommended to ensure optimal performance.

Advantages and Services

Customizable Solutions – Available in fixed-speed and VFD models tailored to specific drilling requirements.
After-Sales Support – Comprehensive technical assistance, spare parts supply, and on-site service.
Fast Global Delivery – Large inventory ensures prompt shipment to drilling sites worldwide.
