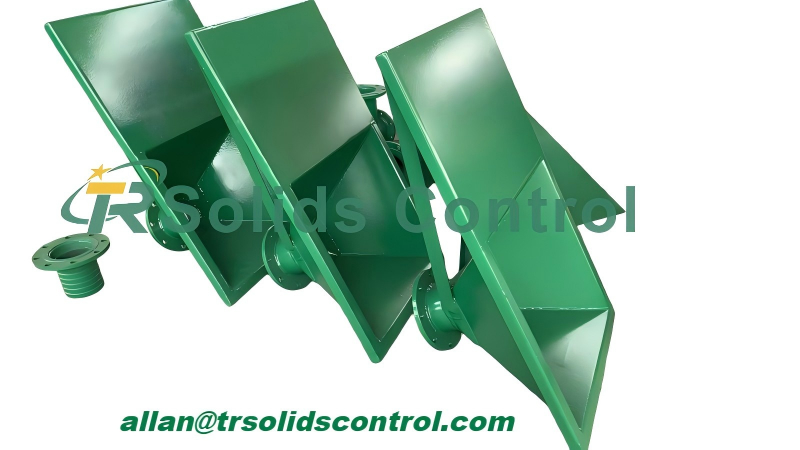

TRSL150-50 Mud Hopper Solids Control Equipment

Mud Hopper is used to prepare or aggravate drilling fluid,change the density,viscosity,water loss of the drilling fluid. If put the drilling fluid materials and chemical addition agents into the mud tank directly,the materials and agents may precipitate or conglobate,with the decive,the materials and agents can be mixed well.

Advantages of Drilling Mud Hopper

• Mud Hoppers can be Venturi hopper.

• Ideal design on sufficient working pressure make pumps higher performance.

• New style with better feasibility under different working condition.

• Meet drilling fluids weighting demand for 1500m ~ 9000m well drilling.

• Mud Hopper and pump connected with pipelines. More flexible on hopper and pump quantities.

• Centrifugal pump is mechanical seal type. Reliable and durable.

• Easy to operate and maintain.

Mud Hopper Technical Parameters

6 inch high shear low pressure mud hopper

Complete with 2 in(also 1.5 inch special lower volume nozzle, venturi hopper, funnel, sack table, 6 inch butterfly, valve all mounted on a base. This hopper with 2 inch nozzle handles 800-900 pounds of barite per minute. Three(3) inch male NPT inlet and 6 inch weld neck outlet. (Other end types are available). Unit primed with carbozinc and painted with finish coat.

4 inch high shear low pressure mud hopper
Complete with 1.5 inch nozzle, venturi hopper, funnel, sack table, 4 inch butterfly, valve all mounted on a base. The hop-per with 1.5 inch nozzle handles 5-600 pounds of barite per minute. Two (2) inch male NPT inlet and 4 inch weld neck outlet. (Other end types are available). Unit primed with carbozinc and painted with finish coat.
