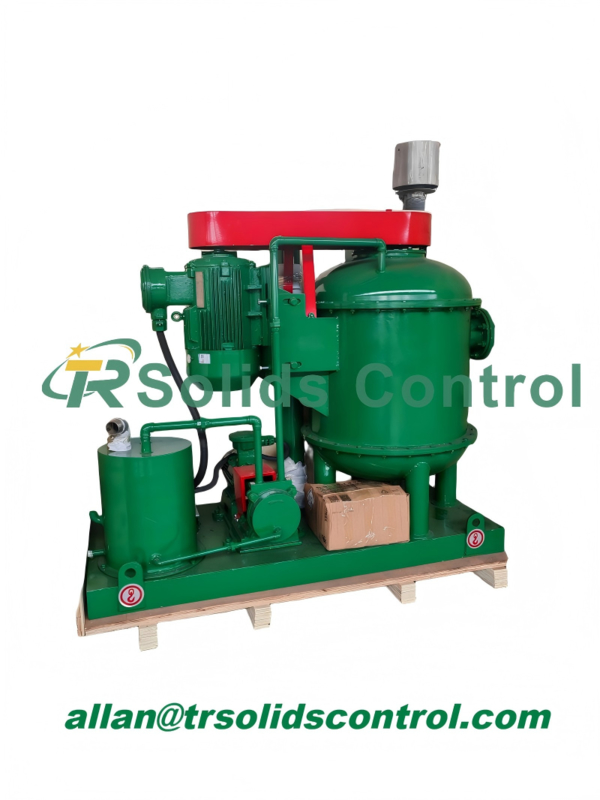

Mud vacuum degasser is a special product for gas treatment in drilling fluid. The unit is located downstream of the shale shaker, mud cleaner and mud gas separator, followed by the hydrocyclone and centrifuge. Used to remove small entraining bubbles left in the mud by the mud gas separator.

Mud Vacuum degasser is a device that uses a vacuum pump to create a negative pressure environment in the main body of the degasser, and presses the liquid to be treated (such as mud, drilling fluid, etc.) into the interior of the degasser through atmospheric pressure, and uses the impeller to break the bubbles in the liquid and separate the gas. Its working principle mainly includes the suction of the vacuum pump, the rupture and separation of the bubble and the discharge of the gas and other steps. Common types of degasser include vacuum degasser, jet degasser and derrick vacuum degasser.

Drilling Vacuum Degasser Technical Parameters

Mud Vacuum degasser advantages:

1. Water ring mud vacuum pump is suitable for the suction of flammable and explosive gas.
2. The gas-water separator in the drilling vacuum degasser is water-saving and environmentally friendly.
3. Scientific and reasonable structure design to achieve effective separation of gas and liquid.
4. The degassing efficiency of mud vacuum degasser is high, up to 95% or more.
5. Self-priming device can pump drilling fluid without centrifugal pump.
6. Belt drive, ensure long time trouble-free work.

We are a mud vacuum degasser supplier. TR is a Chinese mud vacuum degasser manufacturer integrating design, sales, production and service. If you need a degasser then start from TR, we can give you a free design scheme. The best vacuum degasser starts with TR.
