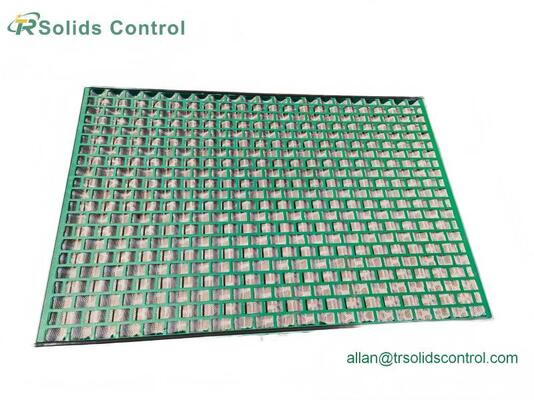

TRFLC-2000 PMD Shaker Screen API RP 13C Compliant Stainless Steel S.S304 1053×697mm for Drilling Industry

In solids control systems for drilling operations, screens as the first critical filtration barrier, and their performance directly impacts drilling efficiency, cost control, and operational safety. The TRFLC-2000 PMD/PWP screen, with its robust quality strictly adhering to API RP 13C standards, is suitable for various drilling conditions, making it a reliable choice for high-efficiency screening in the drilling industry.

API RP 13C, as the authoritative standard for drilling fluid treatment equipment in the oil and gas industry, imposes stringent requirements on core indicators such as material strength, screening accuracy, and wear resistance of screens. From raw material selection to production processes, every step of the TRFLC-2000 screen adheres to API standards: it uses high-strength stainless steel, strengthened through a special heat treatment process, resulting in tensile strength and impact resistance far exceeding the industry average; the screen aperture accuracy is controlled within ±0.02mm, ensuring precise separation of solid particles in the drilling fluid; and the surface is treated with a wear-resistant coating, reducing wear rate by more than 30% compared to ordinary screens, effectively extending service life. Certified by a third-party authoritative organization for API RP 13C compliance, the TRFLC-2000 screen provides a solid quality and safety guarantee for drilling operations.

Size:1053X697mm

Package Details:1 pieces in one carton, 20 pcs in one wooden case.

TR Solids Control is willing to provide the highest quality products and the first-class service for both domestic and international customers. Our company sincerely welcomes friends from all over the world to our company to discuss business and work together with each client to create a bright future.

TR shaker screens are currently used in many industries like:

• Drilling Waste Management
• Oil & gas drilling
• Trenchless HDD
• City bored piling
• Tunneling construction
• Oil Sludge Dewatering Systems
• Coal Bed Gas Solids Control System
• Oil Mud Seperation
• Micro-tunneling
• Environment protection
• Mining
• Water Drilling

We are an exporter of Shale Shaker Screen in China. TR Solids Control is the designed, selling, production, service and delivery of Chinese shaker screen producer. We will provide high quality PRE-Tensioned Screen and Shale Shaker Screen. For more information, pls feel free contact us.

Dual-Structure Design for Precise Adaptation to Diverse Drilling Needs

To address the differentiated needs of various drilling scenarios, the TRFLC-2000 screen offers two structural options: PMD screen and a PWP screen, achieving full scenario coverage:

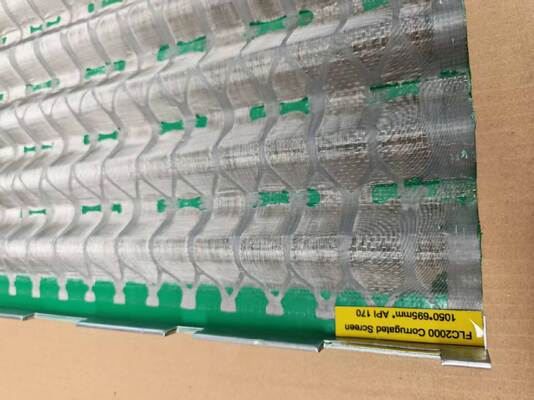

PMD Screen: Utilizing a unique wave-shaped mesh design, it increases the effective screening area by over 30%. At the same throughput, it reduces drilling fluid flow rate, extends contact time, and significantly improves solid particle separation efficiency. Simultaneously, the wave structure effectively reduces screen clogging, making it particularly suitable for complex drilling conditions with high solid content, such as shale gas development and deep well drilling, ensuring continuous and stable drilling fluid performance.

PWP Screen: Maintaining the stability and ease of installation of traditional flat screens, the screen surface is flat and uniform, ensuring stable screening accuracy. It is suitable for conventional land drilling and shallow well operations where easy screen replacement is crucial. Its simple structural design reduces maintenance difficulty, allowing for quick replacement and minimizing downtime.

Customer's satisfaction is the highest pursuit of TR Solids Control.
