Product Description

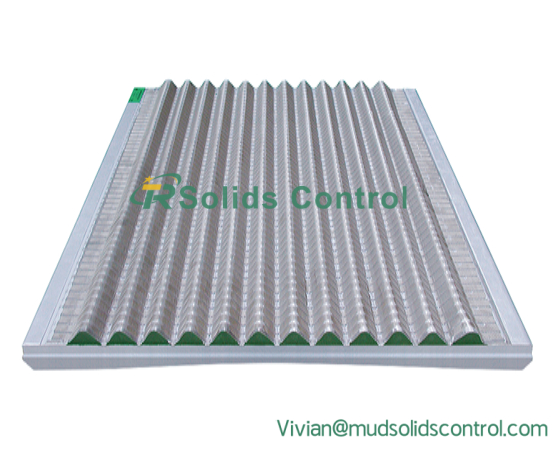

The PMD (Pyramid) Shaker Screen is a high-performance replacement screen designed for superior solids control and extended operational life in oil & gas drilling operations. Manufactured with multi-layer stainless steel wire mesh and a pyramid-shaped composite or steel frame structure, the PMD screen offers 20%–40% more effective screening area than traditional flat screens.

Engineered for precision and durability, these screens ensure efficient particle separation, enhanced fluid throughput, and longer screen life, helping drilling operators maintain cleaner mud, lower fluid losses, and reduce overall solids control costs. PMD screens are fully compatible with popular shaker models.

Features & Benefits

✔ Increased Screen Area – Pyramid design provides up to 40% more usable screening surface, improving handling capacity.

✔ High Filtration Efficiency – Fine mesh layers ensure precise cut points for cleaner drilling fluids.

✔ Long Service Life – Made from premium SS304/SS316 stainless steel with corrosion and wear resistance.

✔ Lightweight & Durable Frame – Composite or steel frame ensures rigidity, easy handling, and minimal deformation.

✔ Quick Installation & Replacement – Hook strip or wedge block fastening for rapid screen changeout.

✔ Cost-Effective Operation – Longer lifespan and high separation efficiency reduce total solids control costs.

✔ Available in Various Mesh Sizes – Mesh range from API 20 to API 325 for different drilling conditions.

Technical Advantages

✔ Multi-Layer Bonded Mesh Design – Each layer is securely bonded to enhance strength and prevent delamination.

✔ Precision Pyramid Structure – The raised design improves mud flow and accelerates solids discharge.

✔ Advanced Manufacturing Technology – Ensures consistent aperture, tight tolerances, and optimal performance.

✔ Corrosion & Abrasion Resistance – Engineered for long-term use in harsh oilfield environments.

✔ API RP13C Compliant – All screens are manufactured and tested according to API standards for reliability.

✔ Optional Composite or Steel Frames – Choice of lightweight composite or heavy-duty steel frame construction.

Applications

✔ Oil & Gas Drilling Rigs – For primary solids control and mud conditioning systems.

✔ HDD (Horizontal Directional Drilling) – Efficiently removes solids to improve drilling fluid performance.

✔ Mining & Quarrying Operations – For separation and dewatering of mineral slurries.

✔ Tunneling & Piling Projects – Keeps drilling fluid clean during foundation and underground works.

✔ Environmental & Wastewater Treatment – For solids separation in sludge recycling systems.

Advantages & Services

✔ Custom Screen Manufacturing – Available in different dimensions, mesh types, and frame materials.

✔ Strict Quality Control – Each screen is tested for tensile strength, mesh integrity, and conductance.

✔ Large Stock Availability – Standard sizes always in stock for fast delivery.

✔ Global Compatibility – Designed to fit multiple shaker brands.

✔ Technical Support – Professional guidance on mesh selection and shaker optimization.

✔ After-Sales Assurance – Long-term cooperation and replacement screen supply guaranteed.

Why Drilling Professionals Choose it?

✔ Higher Fluid Throughput – Pyramid design boosts screening capacity while maintaining accuracy.

✔ Exceptional Durability – Built with premium materials to withstand harsh drilling conditions.

✔ API Certified Quality – Complies with international standards for performance and reliability.

✔ Interchangeable Design – Fits a wide range of popular shaker models with perfect compatibility.

✔ Reduced Mud Loss & Maintenance Costs – Ensures long-term economic operation.

✔ Trusted by Global Drilling Contractors – Proven performance in oilfield, HDD, and environmental projects.

About TR SolidsControl

TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
