1050×695 Mm PWD Shale Shaker Screen – Ideal Replacement For TR Shakers & Mud Cleaners

1050×695 mm PWD Shale Shaker Screen – Ideal Replacement for TR Shakers & Mud Cleaners

Product Description

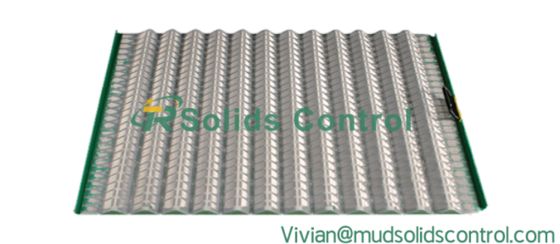

The 1050 × 695 mm PWD shale shaker screen is a high-performance replacement screening solution specifically engineered to match the operational requirements of TR series shale shakers and mud cleaners. Designed with precision, this screen serves as a direct, drop-in replacement—eliminating compatibility issues and ensuring seamless integration with existing TR shaker systems. Crafted from durable, industry-grade materials, it is built to withstand the harsh conditions of drilling operations, including exposure to abrasive drilling mud, high vibration, and fluctuating temperature extremes. The screen’s dimensions (1050mm in length × 695mm in width) are calibrated to fit TR shakers and mud cleaners perfectly, maintaining the original equipment’s screening efficiency without the need for modifications to the shaker frame or assembly. Whether used in onshore oil and gas drilling, mining exploration, or construction piling projects, this PWD replacement screen delivers consistent solids control performance, helping to separate drill cuttings from drilling fluid and recycle usable mud back into the system.

Features & Benefits

✔ Precision-Driven Fit: With exact dimensions of 1050 × 695 mm, the screen is tailor-made for TR shakers and mud cleaners, ensuring a hassle-free replacement process that saves downtime during maintenance.

✔ Enhanced Durability: Constructed with high-tensile steel mesh and a reinforced frame, the screen resists wear, tear, and corrosion—extending service life by 20-30% compared to standard replacement screens, which reduces replacement frequency and operational costs.

✔ Optimal Screening Efficiency: The screen’s multi-layered mesh design (available in various mesh sizes to suit different drilling conditions) achieves superior solids separation, capturing fine and coarse cuttings alike while minimizing fluid loss.

✔ Vibration-Resistant Design: Engineered to withstand the high-frequency vibrations of TR shakers, the screen maintains structural integrity during prolonged use, preventing mesh deformation or frame damage.

✔ Cost-Effective Operation: As a direct replacement for OEM TR shaker screens, it offers comparable or better performance at a more competitive price point, lowering total ownership costs for drilling operators.

Technical Advantages

✔ Advanced Mesh Technology: The screen utilizes warp-knitted or woven mesh (depending on application needs) with uniform aperture sizes, ensuring consistent screening performance and reducing the risk of clogging. The mesh is bonded to a rigid frame using high-strength adhesive, enhancing bond strength and resistance to thermal and mechanical stress.

✔ Dimensional Accuracy: Manufactured using CNC cutting and forming processes, the 1050 × 695 mm frame meets tight tolerance standards (±1mm for length and width), guaranteeing a perfect fit with TR shaker baskets and eliminating gaps that could compromise screening efficiency.

✔ High Load-Bearing Capacity: The frame is crafted from lightweight yet robust aluminum alloy or steel, enabling it to support the weight of heavy drilling mud and cuttings without bending or warping—even under continuous operation.

✔ Chemical Resistance: The mesh and frame coatings are resistant to harsh drilling fluids (including oil-based, water-based, and synthetic muds), preventing degradation from chemicals and ensuring long-term performance in aggressive environments.

✔ Easy Installation: Designed with the same mounting points as OEM TR screens, the PWD replacement screen can be installed in minutes by on-site technicians, reducing equipment downtime and maintenance labor costs.

Applications

✔ Oil & Gas Drilling: Onshore and offshore oil and gas wells, where efficient separation of drill cuttings from drilling fluid is critical for maintaining wellbore stability and reducing environmental impact.

✔ Mining Exploration: Mineral exploration drilling , where the screen helps recycle drilling mud and remove debris to ensure accurate sample collection.

✔ Construction Piling: Deep foundation drilling , where it separates soil and rock cuttings from bentonite slurry, keeping the slurry clean and effective for hole stabilization.

✔ Geothermal Drilling: High-temperature geothermal well projects, where the screen’s heat-resistant materials withstand elevated downhole temperatures while maintaining screening performance.

✔ Environmental Drilling: Remediation drilling and groundwater monitoring, where precise solids separation prevents contamination of drilling fluid and ensures compliance with environmental regulations.

Advantages & Services

✔ Reliable Supply Chain: We maintain a large inventory of 1050 × 695 mm PWD screens, ensuring fast delivery to minimize drilling downtime caused by screen replacements.

✔ Customization Options: Beyond standard mesh sizes, we offer custom mesh configurations to meet specific drilling conditions for TR shakers and mud cleaners.

✔ Quality Assurance: Each screen undergoes rigorous testing before shipment, ensuring compliance with API and ISO standards for drilling equipment.

✔ After-Sales Warranty: We back the 1050 × 695 mm PWD screen with a 6-month warranty against manufacturing defects, giving operators peace of mind and reducing the risk of unexpected replacement costs.

Why Drilling Professionals Choose it?

Drilling professionals rely on the 1050 × 695 mm PWD shale shaker screen for TR shakers and mud cleaners because it addresses the core challenges of solids control operations: reliability, efficiency, and cost-effectiveness. Unlike generic replacement screens that may require modifications or fail prematurely in harsh drilling conditions, this PWD screen is purpose-built for TR equipment—ensuring it works in harmony with existing systems to deliver consistent results. Its extended service life reduces the frequency of screen changes, cutting down on maintenance time and labor costs, while its superior screening efficiency helps recycle more drilling fluid, lowering fluid procurement expenses. Additionally, the combination of competitive pricing, fast delivery, and responsive technical support makes it a trusted choice for drilling contractors, oilfield service companies, and mining operators who need to keep their operations running smoothly and profitably. For professionals who prioritize equipment uptime and performance, the PWD replacement screen is the clear choice for TR shakers and mud cleaners.

About TR SolidsControl

TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
