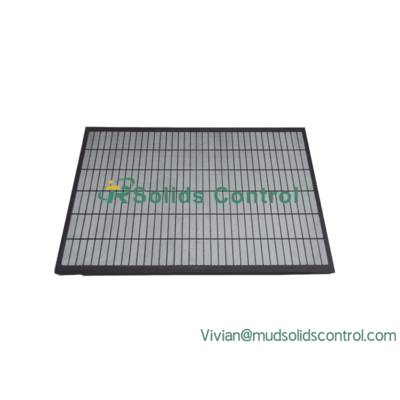

Composite Frame Shaker Screen – Mesh Sizes 20 to 325 for Diverse Filtration Needs

Product Description

The Composite Frame Shaker Screen is an advanced replacement screen solution designed for shale shakers in solids control systems. Manufactured with high-strength composite frame material and stainless steel wire mesh, it offers superior durability, resistance to corrosion, and consistent performance in demanding drilling environments.

Available in a wide range of mesh sizes from 20 to 325, the screen is optimized for efficient particle separation, extending drilling fluid life and reducing overall operating costs. Its lightweight composite construction makes handling safer and easier while improving vibration resistance and screen longevity.

Features & Benefits

✔ Wide Mesh Range (20–325) – Supports coarse to ultra-fine solids separation, adaptable for various drilling applications.

✔ Durable Composite Frame – Corrosion-resistant, impact-resistant, and longer-lasting than traditional steel frames.

✔ High Separation Efficiency – Stainless steel wire cloth provides precise cut points and stable performance.

✔ Lightweight Design – Easier handling and faster installation reduce rig downtime.

✔ Cost-Effective Operation – Longer screen life reduces replacement frequency and maintenance costs.

✔ Universal Compatibility – Available for major shaker brands.

✔ Enhanced Fluid Recovery – Maximizes mud recycling, reducing waste and saving drilling costs.

Technical Specifications

Technical Advantages

✔ Multi-Layered Mesh Bonding – Prevents mesh blinding and improves solids removal efficiency.

✔ Heat & Chemical Resistance – Designed for harsh drilling fluids with polymers, brines, and oil-based muds.

✔ Structural Integrity – Composite frame resists warping under high vibration and load conditions.

✔ Consistent Performance – Stable tensioned mesh ensures even particle distribution and fluid throughput.

✔ Extended Service Life – Composite materials outperform traditional steel in fatigue and wear resistance.

Applications

✔ Oil & Gas Drilling – Effective solids control in land and offshore drilling rigs.

✔ Horizontal Directional Drilling (HDD) – Enhances mud recycling efficiency in trenchless construction.

✔ Mining & Quarrying – Used for mineral slurry screening and dewatering applications.

✔ Environmental & Waste Treatment – Suitable for slurry separation in industrial wastewater treatment.

✔ Tunneling Projects – Supports slurry-based TBM operations for stable excavation.

Advantages & Services

✔ Custom Mesh Options – Mesh count and configuration tailored to client specifications.

✔ Proven Field Reliability – Successfully deployed in drilling projects worldwide.

✔ Lower Replacement Costs – Composite frame extends operational lifespan compared to steel.

✔ Global Support – Technical assistance, rapid delivery, and spare screen supply available.

✔ OEM & ODM Supply – Compatible with leading shaker models and customizable upon request.

Why Construction Professionals Choose Composite Frame Shaker Screens?

✔ Extended Screen Life – Composite frames resist corrosion and fatigue cracking.

✔ Efficient Solids Control – Mesh sizes from 20 to 325 cover diverse drilling needs.

✔ Lightweight & Easy to Handle – Simplifies rig operations and screen replacement.

✔ Lower Operating Costs – Reduced screen consumption and maintenance.

✔ Broad Industry Application – Trusted in oilfield, HDD, mining, tunneling, and wastewater projects.

About TR SolidsControl

TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
