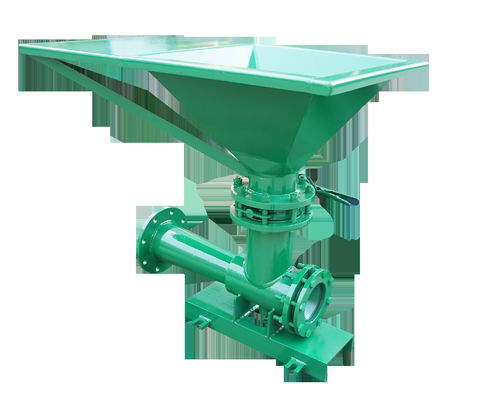

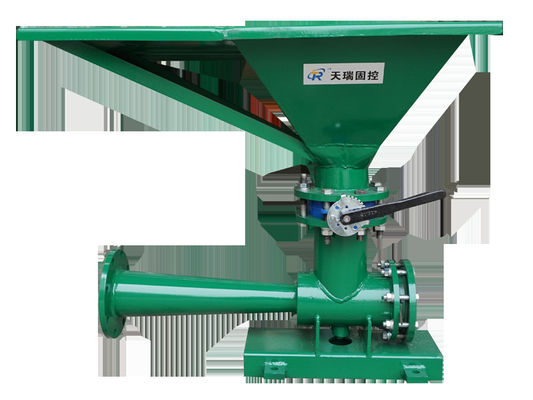

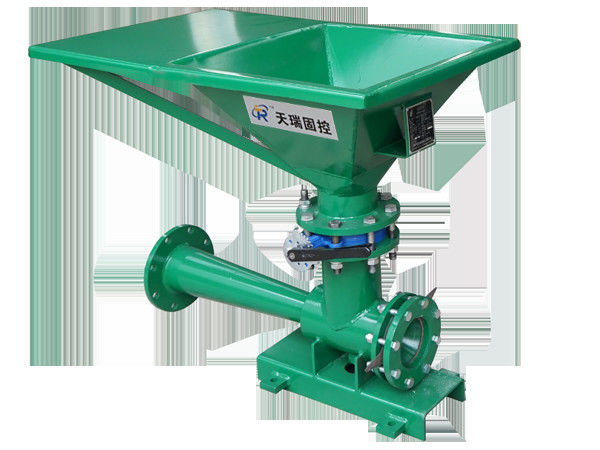

TRSLH150-50 Mud Mixing Hopper with 150mm Inlet Diameter | API & ISO Certified, High Capacity 240m³/h – TR SolidsControl

Product Description

The TRSL Series Mud Mixing Hopper from TR SolidsControl is specifically designed for rapid and efficient preparation of drilling fluids, allowing easy adjustment of fluid density, viscosity, and hydration of additives. Featuring a 150mm inlet diameter, this hopper utilizes a direct Venturi jet mixing mechanism, quickly blending bentonite, barite, polymers, and other drilling additives. Ideal for both onshore and offshore drilling operations ranging from 1,500m to 7,000m in depth, the TRSL Mud Hopper ensures optimal mud conditions and enhanced operational efficiency.

Product Attributes

• Model: TRSLH150 Series
• Capacity: 240m³/h (Model TRSLH150-50)
• Inlet Diameter: 150mm
• Operating Pressure: 0.25–0.40 MPa
• Jet Nozzle Diameter: 50mm, 40mm, 30mm options
• Materials: Robust steel construction with anti-corrosive coating
• Hopper Size: 750×750 mm (standard)
• Certification: API & ISO 9001 certified
• Applications: Oil & gas drilling, HDD, CBM, tunneling, environmental protection

Technical Specifications

Key Features

• Rapid Mixing Capability: Advanced Venturi tube and jet nozzle technology ensure fast and thorough mixing of drilling additives.
• Simple Operation: Standard butterfly valves and intuitive design facilitate quick setup and easy operation.
• High Efficiency: Strong suction capacity allows rapid addition of solids (up to 100 kg/min), significantly shortening mixing time.
• Compact & Portable: Integrated design simplifies transportation, installation, and operation.
• Reliable Durability: Constructed from high-strength materials with corrosion-resistant coating, ensuring long-term reliable operation.

Applications

• Oil & Gas Drilling: Efficient preparation of drilling fluids to maintain precise fluid properties, increasing operational safety and reducing costs.
• Horizontal Directional Drilling (HDD): Ensures consistent fluid quality, critical for smooth trenchless drilling operations.
• Mining & Tunneling Projects: Provides rapid and accurate mixing of additives, maintaining stability and effectiveness in complex drilling environments.
• Environmental Projects: Essential equipment in waste management systems and environmental drilling fluid treatment.
• Well Control Emergencies: Quickly prepares weighted fluids for critical well-control operations during blowouts.

Certifications

• API Certified: Fully compliant with international drilling equipment standards.
• ISO 9001: Meets global quality management system standards.

FAQ

Q: What is the main function of the TR Mud Mixing Hopper?
A: It rapidly blends drilling fluid additives such as barite, bentonite, and polymers, adjusting drilling fluid properties efficiently.

Q: Can different nozzle diameters be customized?
A: Yes, nozzle sizes (30mm, 40mm, 50mm) are available depending on the specific capacity and project needs.

Q: What kind of pumps can match this mud hopper?
A: Our TRSB series centrifugal pumps (15kW–55kW) are perfectly matched for high-efficiency operation.

Q: How easy is it to maintain the equipment?
A: The TR mud hopper features simple design and accessible parts, significantly easing maintenance efforts and reducing downtime.

Q: What’s the maximum feeding rate for additives?
A: The maximum burden speed can reach 100kg/min (Model TRSLH150-50), ensuring rapid mixing and reduced operational delays.

Advantages and Services

• Competitive Pricing: Exceptional value with competitive prices for premium quality equipment.
• Fast Global Delivery: Extensive inventory enables prompt shipment worldwide.
• Customized Solutions: Tailored configurations to meet specific customer demands.
• Comprehensive After-Sales Service: Dedicated global technical support and spare parts availability.
• Compatibility: Easily interchangeable with major international brands for enhanced flexibility.
