TR HDD200 Trenchless System – High-Performance Mud Recycling for HDD Projects

TR HDD200 Trenchless System – High-Performance Mud Recycling for HDD Projects

Product Description

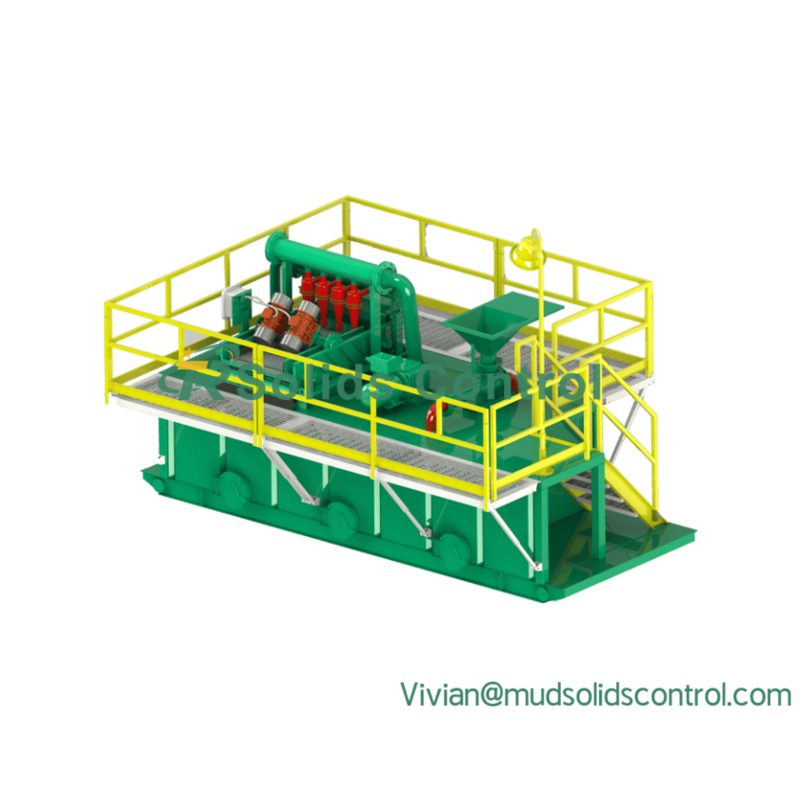

The TRHDD-200 HDD Trenchless System is a compact and efficient mud recycling solution designed specifically for horizontal directional drilling (HDD) projects. With a capacity of 200GPM (50m³/h), it effectively separates solids from drilling fluids, ensuring clean mud circulation and stable drilling performance.

Equipped with a double-layer TRZS752S shale shaker, 4” hydrocyclones, and TRSB series centrifugal pumps, the system provides reliable multi-stage separation while minimizing mud loss. Its integrated mud mixing hopper (TRSLH100) allows quick preparation of new drilling fluids, making it a complete and versatile package for HDD contractors.

Features & Benefits

✔ Compact Footprint – Small system size (4000×2360×2940mm) ideal for urban and confined job sites.

✔ High-Efficiency Shale Shaker – Double-layer screen design increases solids removal performance.

✔ Reliable Hydrocyclones – Four 4’’ desilter cyclones for accurate separation down to 25–50µm.

✔ Integrated Mud Mixing System – TRSLH100 hopper enables fast and uniform mud preparation.

✔ Energy Efficient – Total power consumption of only 44kW ensures low operating cost.

✔ Durable & Easy to Maintain – Heavy-duty steel frame and standardized parts for long service life.

Technical Specifications

Technical Advantages

✔ TRZS752S Shale Shaker with 0.875㎡ upper layer + 1.35㎡ lower layer screen area ensures maximum solids removal efficiency.

✔ TRSB4×3-12J feed pump guarantees stable slurry supply to cyclones.

✔ Optimized Tank Design with 5m³ capacity ensures smooth mud circulation.

✔ Modular & Skid-Mounted system for quick setup, transport, and operation.

✔ Precision Separation – Efficiently handles drilling mud, extending bit life and protecting downhole tools.

Applications

✔ Horizontal Directional Drilling (HDD)

✔ Trenchless Construction Projects

✔ Pipeline Installation & Utility Crossings

✔ Municipal Infrastructure & Urban Underground Works

✔ Water, Gas, and Power Cable Tunneling

Advantages & Services

✔ One-Stop Solution – Integrated system covering solids control, mud mixing, and fluid recycling.

✔ Customizable Options – Cyclone configuration, pump type, and tank size available per project needs.

✔ Fast Installation & Operation – Skid-mounted design for quick mobilization and minimal downtime.

✔ Comprehensive Support – Spare parts, on-site commissioning, and technical training available.

✔ Cost-Saving Operation – Reduces mud consumption, lowers disposal costs, and increases drilling efficiency.

Why Construction Professionals Choose TR HDD Trenchless System?

✔ Reliable Performance – Engineered for stable and continuous mud recycling in demanding HDD projects.

✔ Compact & Mobile – Easy to transport and operate in confined spaces.

✔ Proven Technology – Field-tested TRZS shaker and TRSB pumps ensure dependable operation.

✔ Eco-Friendly Solution – Reduces slurry discharge, supporting sustainable construction practices.

✔ Trusted Partner – TR provides global service and tailor-made solids control systems for trenchless contractors.
