Product Description

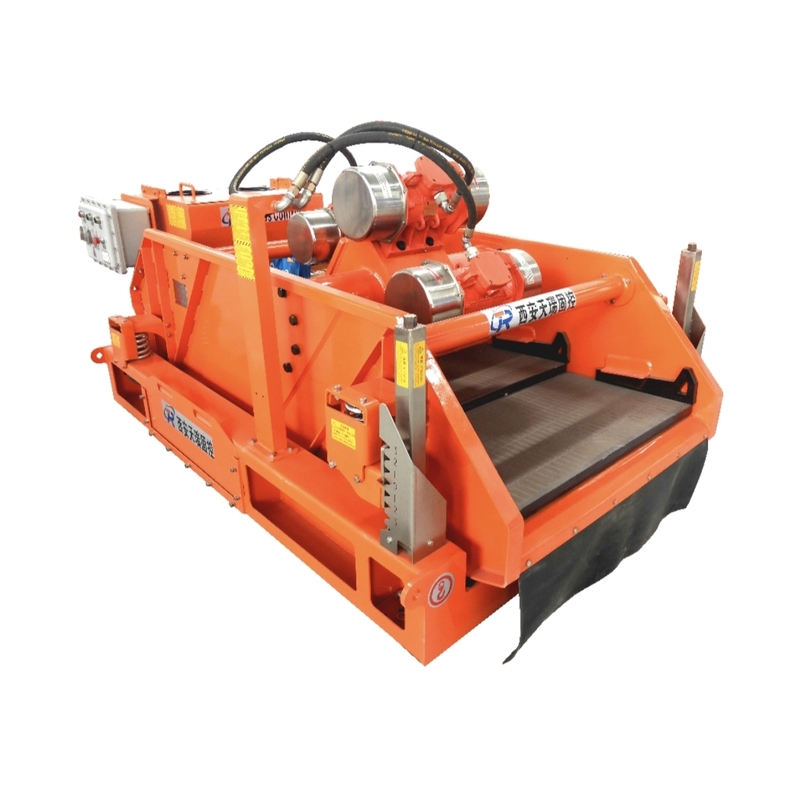

The TRZS584 Dual Motion Shale Shaker by TR SolidsControl is specially designed as a primary solids control device for separating drill cuttings from drilling fluids. It features adjustable dual vibration motion, allowing effective screening and separation for various industrial applications including oil and gas drilling, HDD, mining, and more. With its compact structure, adjustable vibration strength (up to 8.5G), and user-friendly screen angle adjustments, the TRZS584 ensures superior performance, reliability, and easy maintenance, significantly improving the efficiency of drilling operations.

Attributes

·  Model: TRPZS584

·  Motion Type: Dual Motion

· Capacity: 140 m³/h

· Vibration Strength: ≤8.5G(Adjustable)

· Vibration Motion: Dual Motion

· Motor Power: 1.72kw+1.72kw+0.75kw (Martin or OLI motors)

· Screen Area: 2.7 m²

· Deck Angle Adjustment:-3°～+3° (Mechanical)

· Application: Oil & Gas drilling, HDD, mining, waste management

Technical Specifications

Note: All test data based on drilling mud viscosity 45s, and specific gravity 1.2g/cm³.

Key Features

· Adjustable Vibration Strength: Provides optimal separation efficiency by adjusting vibration intensity up to 8.5G according to operational needs.

· Compact Structural Design: Ideal for use in limited spaces while offering high processing capacity.

· Rapid Screen Replacement: Equipped with wedge-type locking mechanism for quick, tool-free screen changes.

· Premium Electrical Components: Includes reliable Schneider or Siemens components for safe, stable operations.

· Adjustable Screen Deck Angle: Mechanical angle adjustment (-3°～+3°) optimizes solids control performance.

· High-Quality Vibrating Motors: Features internationally recognized Martin or OLI motors, ensuring reliability and longevity.

Applications

· Oil & Gas Drilling: Essential primary equipment for solids control, maintaining fluid quality and drilling efficiency.

· Horizontal Directional Drilling (HDD): Keeps drilling fluid clean, ensuring smooth, trenchless drilling operations.

· Mining & Mineral Processing: Effective for solids removal, protecting downstream processing equipment.

· Construction & Tunneling: Used widely in bored piling, micro-tunneling, and urban infrastructure projects.

· Environmental Protection: Supports waste management systems by effectively handling oil sludge and drilling waste.

Certifications

 · API & ISO 9001 Certified: Complies fully with international standards for quality, reliability, and environmental protection.

FAQ

Q: What particle size can the TRPZS584 effectively remove?

A: It efficiently separates larger drill cuttings at the first stage, preparing the fluid for secondary solids control processes.

Q: Is the vibration intensity adjustable?

A: Yes, vibration strength can be adjusted up to 8.5G to suit specific drilling conditions.

Q: How easy is it to replace the screen?

A: Screens can be quickly replaced using a wedge-type locking mechanism, significantly reducing maintenance downtime.

Q: Are explosion-proof standards met?

A: Yes, the shaker complies with ExdIIBt4, IECEX, and A-TEX standards, ensuring safe operation in hazardous areas.

Q: What type of motors are used?

A: Premium Martin or OLI vibrating motors are used, known for reliability and high performance.

Advantages and Services

· High-Quality, Competitive Price: Superior performance and robust construction offered at competitive prices.

· Fast Delivery Worldwide: Extensive inventory enables prompt shipment globally.

· Flexible Payment Options: Payment terms adaptable to customer requirements.

· Global After-Sales Service: Comprehensive technical support and readily available spare parts internationally.

· Interchangeability: Compatible and easily replaceable with international equipment brands.dvantages and Services
