Sludge vacuum pump, also known as solids vacuum pump or solids transfer pump, is a high load and powerful suction pneumatic vacuum pump. It uses vacuum suction to move materials over long distances, even in conditions where conventional pumps are prone to clogging.
The sludge vacuum pump works by creating a vacuum inside the system to draw sludge into a receiving tank. Once the chamber is filled, the material is discharged through pressure or mechanical release.
This cycle allows continuous or batch transfer of heavy sludge without the need for traditional impellers or screw mechanisms.
The vacuum system prevents blockages and ensures stable performance even with thick, sticky drilling waste.It is commonly used in drilling waste management systems, tank cleaning operations, and sludge transfer between storage and treatment units.
The materials that can be transported are: drill cuttings discharged from the shale shakers; waste mud, drill cuttings and tailings; oil sludge in the mud pit; harmful Cleaning of waste; solid particles such as sand; Cleaning of sediments on the bottom of the ship; Feces, waste in underground sewage pipes; Diatomite.
Sludge vacuum pumps are available in different capacities depending on sludge volume and transfer distance requirements.

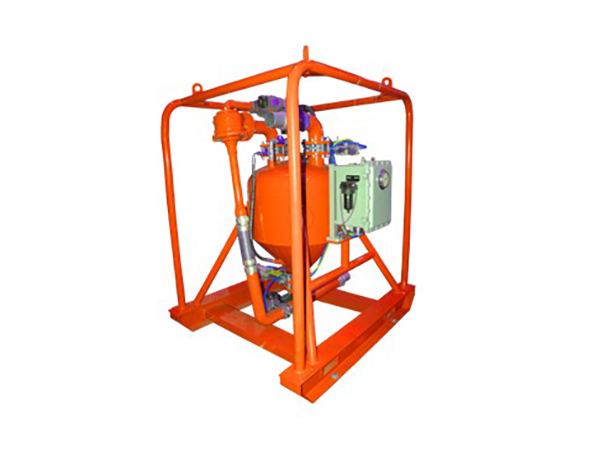

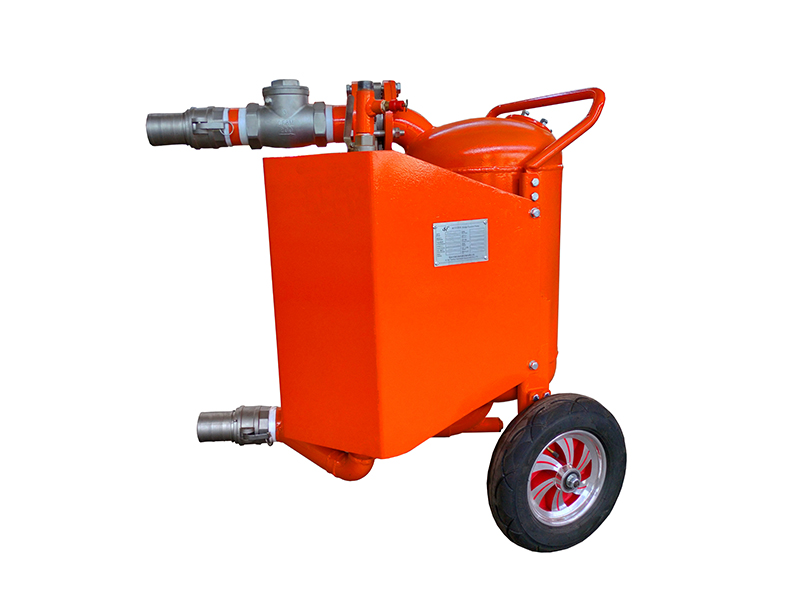

The system can be configured for mobile or skid-mounted installation based on site conditions.
Air-powered and electric-driven versions are available for different operational environments.
Custom designs are available for offshore drilling platforms and high-capacity waste systems.
