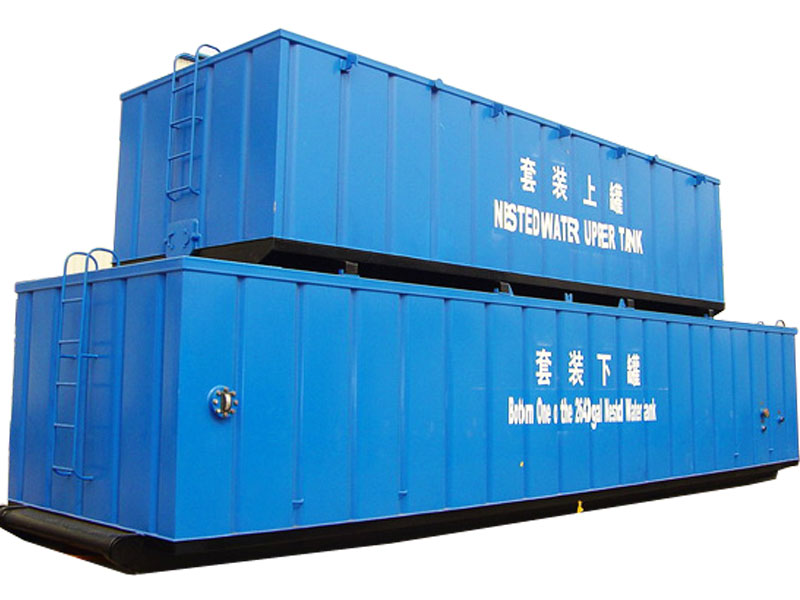

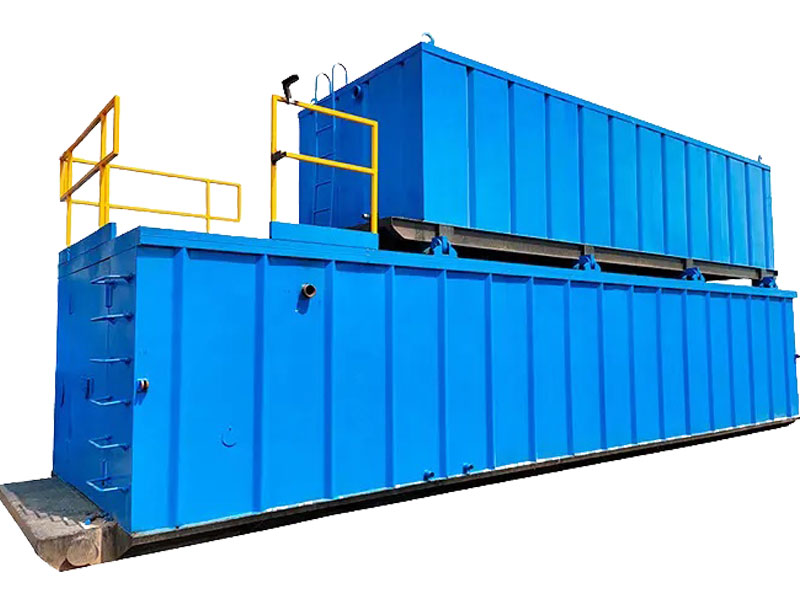

Nested Water Tank stores water at drilling sites and other oilfield locations.
At the site, the tanks are set up individually. Several tanks can also be placed together when more storage capacity is needed.
The TRSG series comes in total capacities of 80, 100, and 120 m³. Each model includes a large tank and a small tank, with their capacities adding up to the listed total.
Once the water has been used, the tanks can be emptied, moved, and nested again for transport or storage.
1.Nested design saves space during transport and storage
2.Multiple tanks can be placed together for additional storage
3.Large and small tank capacities for each TRSG model
4.Steel construction for oilfield water storage
|
Model |
TRSG80 |
TRSG100 |
TRSG120 |
|
Total capacity（m³） |
80 |
100 |
120 |
|
Large tank capacity（m³） |
45 |
60 |
70 |
|
Small tank capacity（m³） |
35 |
40 |
50 |
|
Dimensions（mm） |
11300×2500×2750mm |
11800×3000×2870mm |
13500×3000×2870mm |
● Oil and gas drilling
● Land drilling operations
● Remote drilling camps
● Temporary drilling locations
● Oilfield water storage
● Drilling site service-water storage
