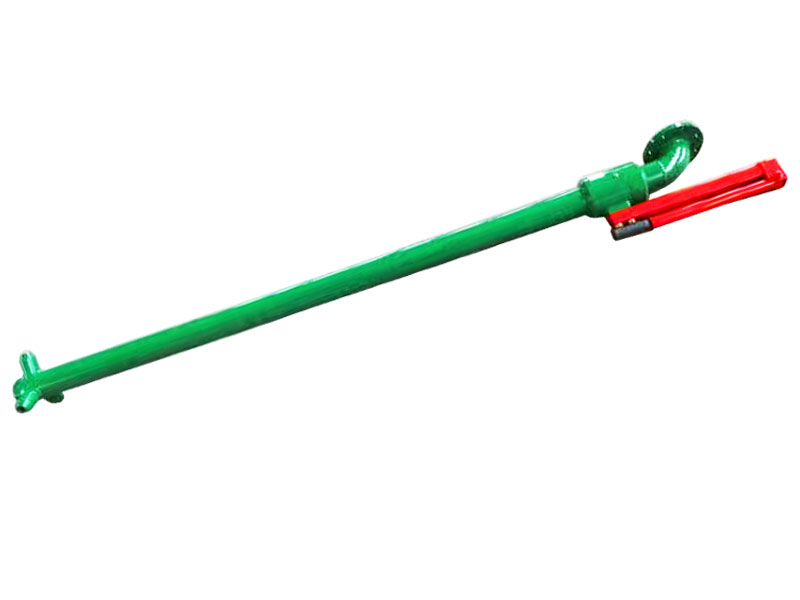

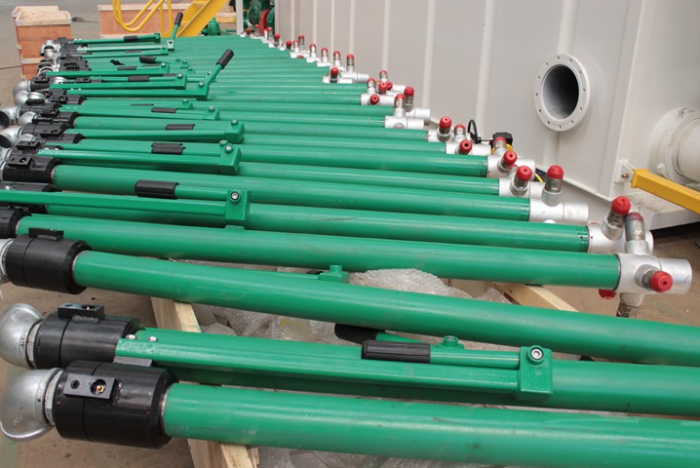

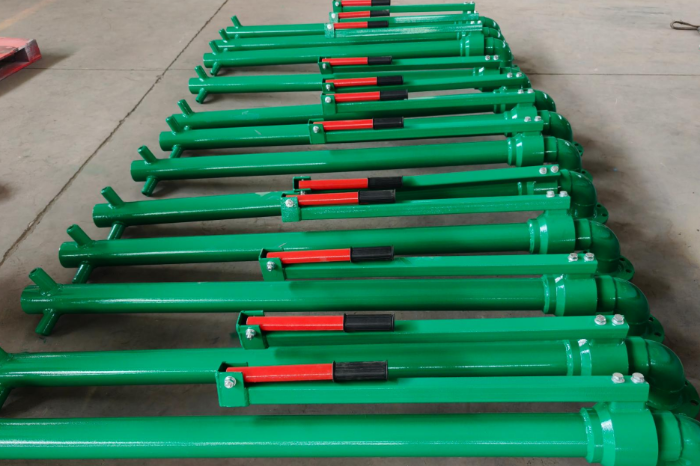

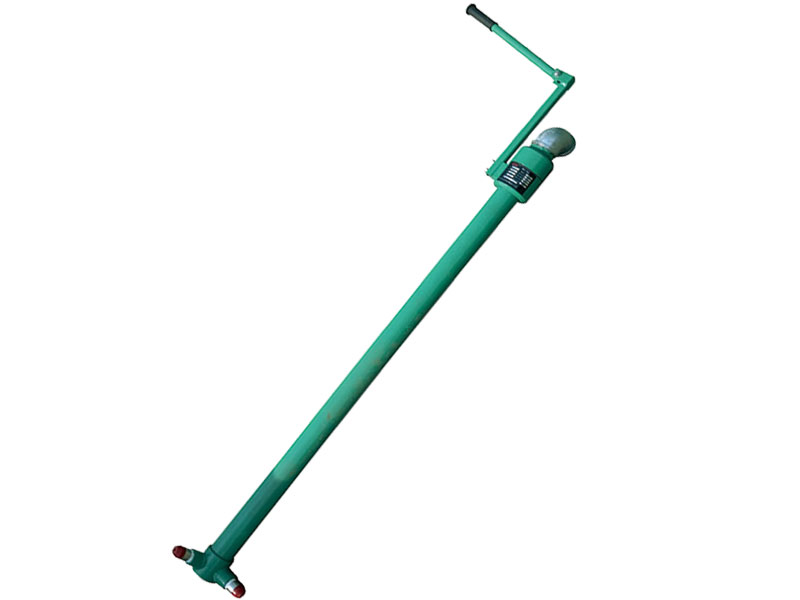

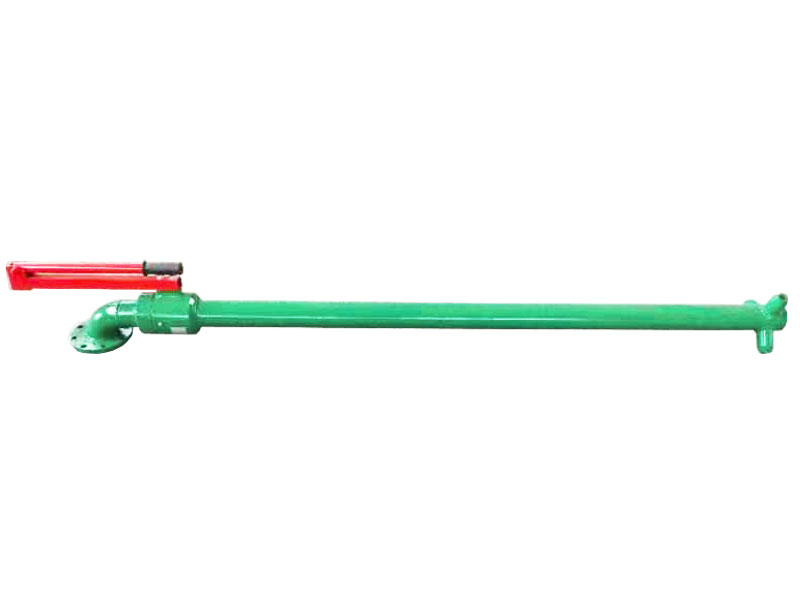

TR Mud Gun is installed in drilling mud tanks to provide supplemental mixing and circulation. It is commonly used with mud agitators, especially around tank corners and other low-flow areas.
Pressurized drilling fluid enters the mud gun and exits through the nozzle as a directed jet. The jet keeps mud moving around the tank and helps prevent solids from settling at the bottom. Fixed models direct the jet in one position, while rotary models allow the jet direction to be adjusted through 360°.
1.Auxiliary jet mixing keeps solids suspended and reduces buildup at tank bottoms and corners
2.Fixed and 360° rotary configurations for different jet directions
3.Single- or three-nozzle options for different jetting arrangements
4.Replaceable nozzles simplify nozzle servicing
5.No separate drive motor is required; pressurized drilling fluid generates the jet
6.2" and 3" sizes for common mud tank piping arrangements
|
Model |
TRNJQ50-3 |
TRNJQ50-3X |
TRNJQ80-3 |
TRNJQ80-3X |
|
Diameter |
50mm |
50mm |
80mm |
80mm |
|
Work Pressure |
≤6.4MPa |
≤3.2MPa |
≤6.4MPa |
≤3.2MPa |
|
Nozzle Number |
1 or 3 |
1 or 3 |
1 or 3 |
1 or 3 |
|
Rotation Angle |
N / A |
360° |
N / A |
360° |
Mud Guns are installed in drilling mud tanks where additional circulation or localized tank-bottom cleaning is needed.
● Active mud tanks
● Mud Mixing tanks
● Suction compartments
● Mud storage tanks
● Solids control systems
● HDD mud recycling systems
