HDD Mud Recycling
HDD Mud Recycling Solutions
Horizontal Directional Drilling Fluid Recovery and Recycling Systems
HDD projects rely on drilling fluid to transport cuttings, cool drilling tools, and maintain borehole stability. TR provides mud recycling systems for trenchless construction projects to meet different drilling conditions and project requirements.
HDD Drilling Challenges
Managing Drilling Fluid During HDD Construction
During horizontal directional drilling, drilling fluid returns from the borehole carrying soil cuttings. As drilled solids accumulate in the mud system, they can affect mud properties, increase fluid treatment requirements, and reduce drilling efficiency.
01
High Drilling Fluid Consumption
Long-distance HDD projects often consume large volumes of drilling fluid. Without proper recycling and solids removal, fresh fluid consumption and operating costs can increase.
02
Solids Accumulation in Mud
Drilled cuttings continuously enter the returned mud, increasing solids loading and affecting fluid properties. Excessive solids can reduce drilling performance and increase wear on drilling equipment.
03
Used Mud Handling
HDD operations generate used drilling fluid containing water, bentonite, and drilled solids. Proper treatment is required to recover reusable fluid and reduce waste handling during construction.
HDD Mud Recycling Approach
A properly designed mud recycling system separates drilled solids from returned drilling fluid and prepares the recovered mud for reuse during HDD operations.
Drilling Fluid Recovery
Recover reusable drilling fluid during HDD operations and reduce the need for fresh fluid replacement.
Maintain Mud Performance
Control solids content to maintain consistent drilling fluid properties.
Support Continuous Operation
Maintain consistent mud treatment for long-distance and complex HDD projects.

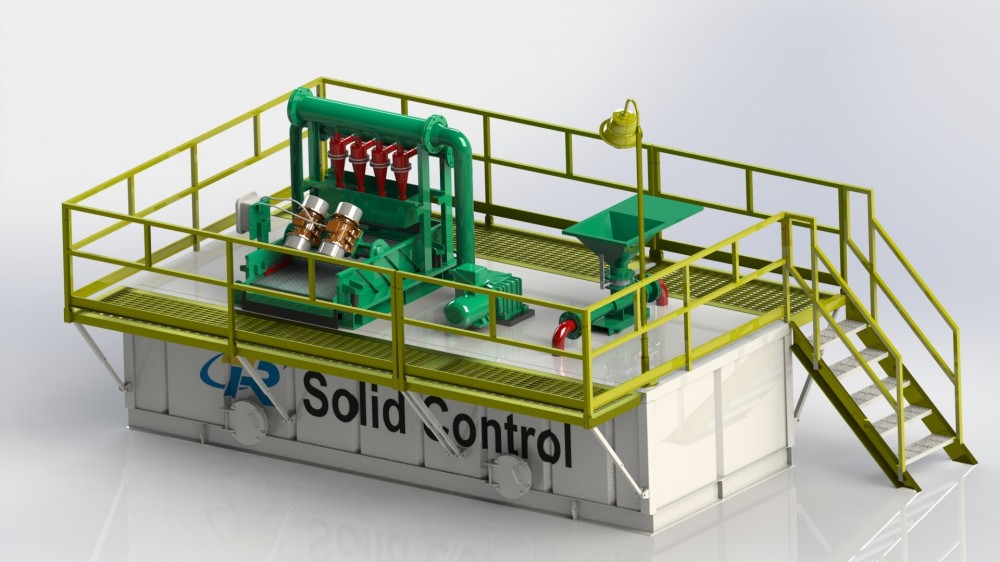

HDD Mud Recycling Process

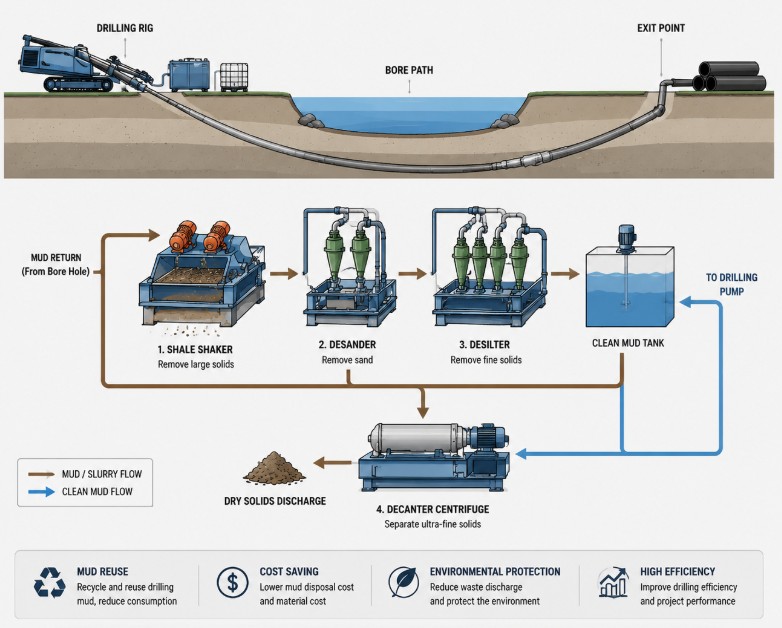

During HDD construction, returned drilling fluid passes through multiple separation stages to remove drilled solids and prepare the mud for reuse.
Returned Drilling Fluid
→
Primary Solids Separation
→
Fine Solids Removal
→
Recovered Drilling Fluid
HDD Applications
Supporting Trenchless Construction Projects
Pipeline Crossing
HDD mud recycling systems help manage drilling fluid during long-distance pipeline crossings by recovering reusable fluid and reducing fluid losses.
River Crossing
River crossing projects require consistent mud recycling to maintain drilling fluid quality during extended HDD operations.
Highway and Railway Crossing
Compact mud recycling systems are used for HDD projects where space is limited, such as highway and railway crossings.
Urban Utility Installation
Mud recycling helps manage drilling fluid during underground cable, water, and communication pipeline installation.

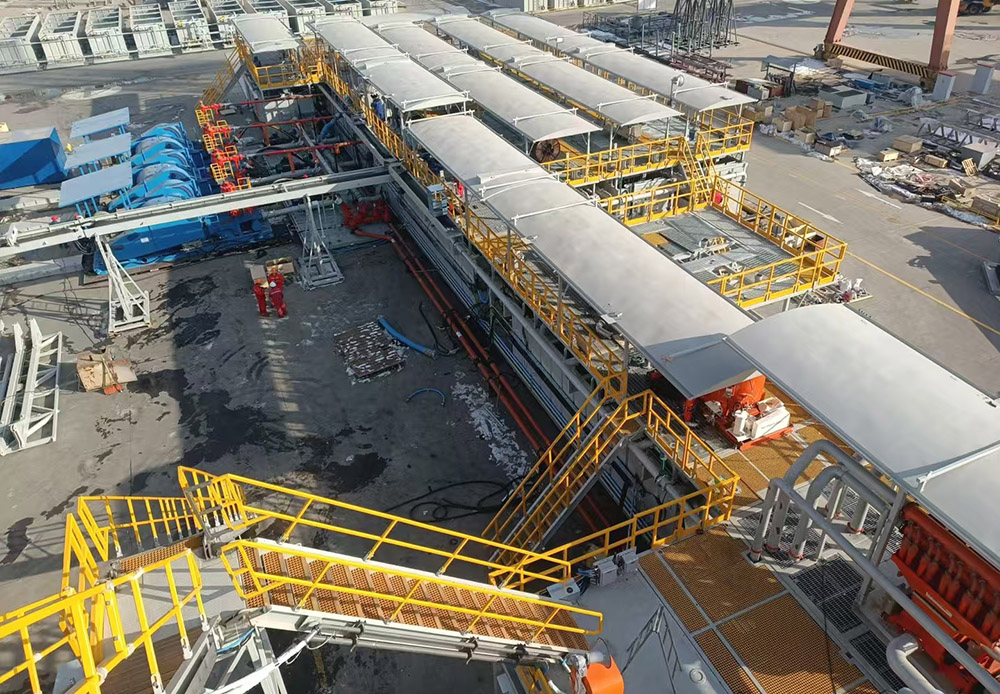

HDD Mud Recycling Project Experience
Supporting HDD Projects Worldwide

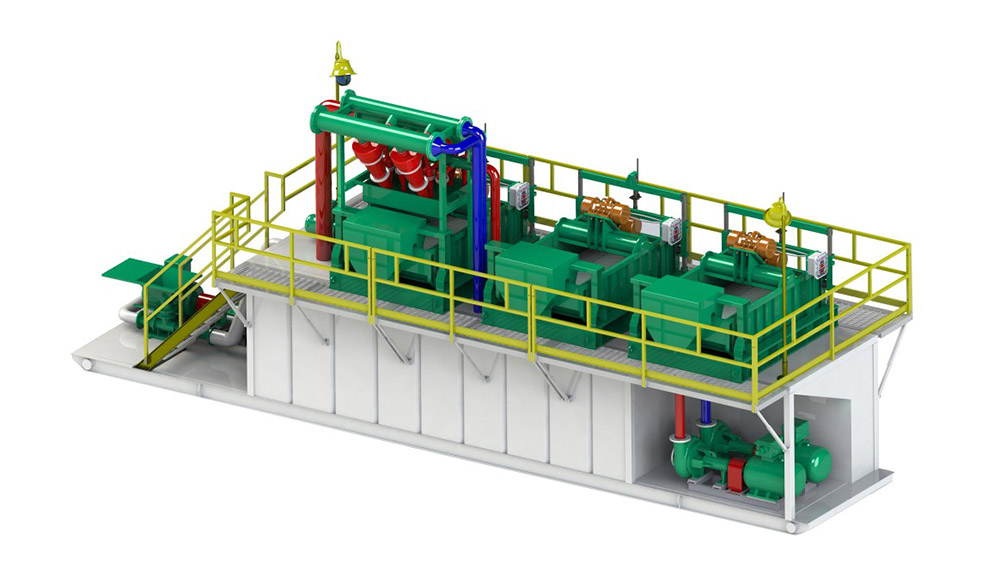

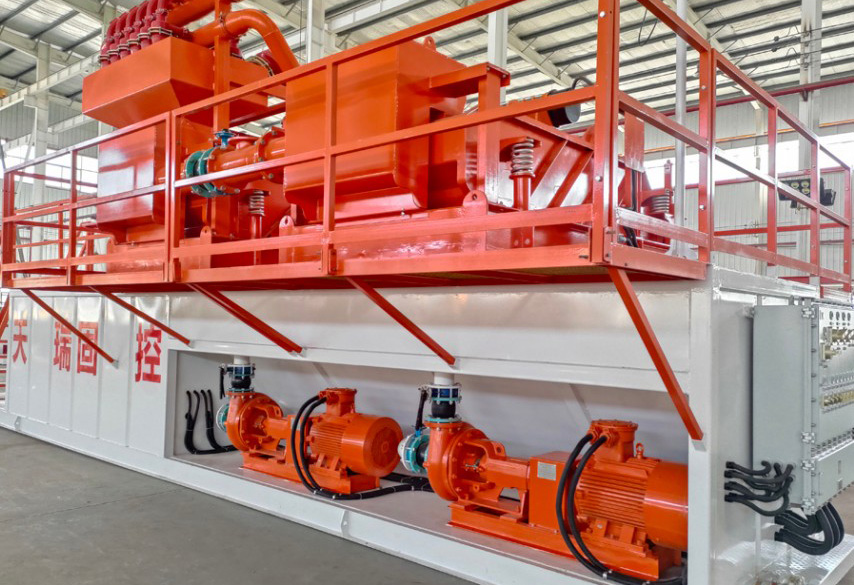

1000 GPM Mud Recycling System for HDD Construction in Nigeria
Applied for large-scale HDD construction requiring high-volume drilling fluid treatment.

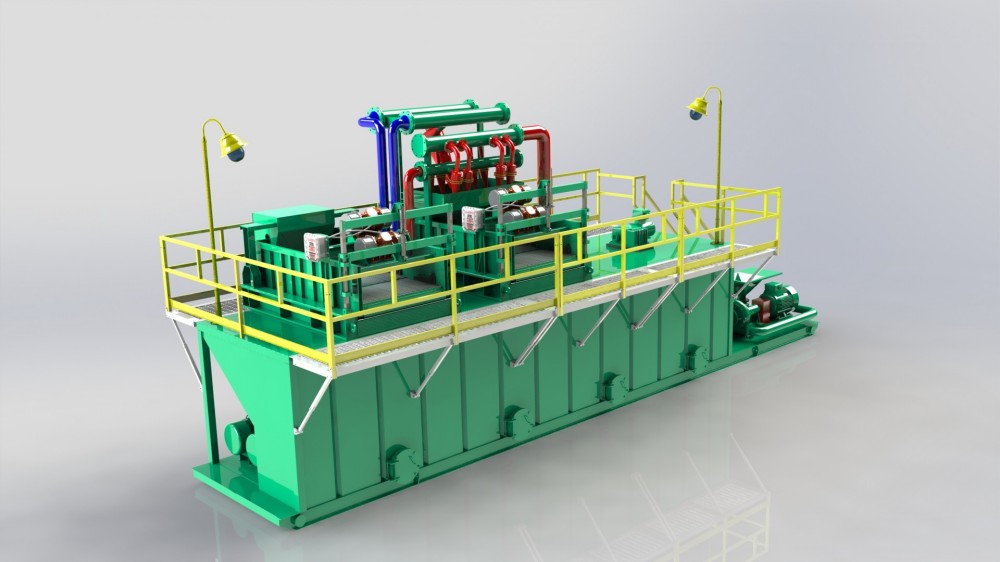

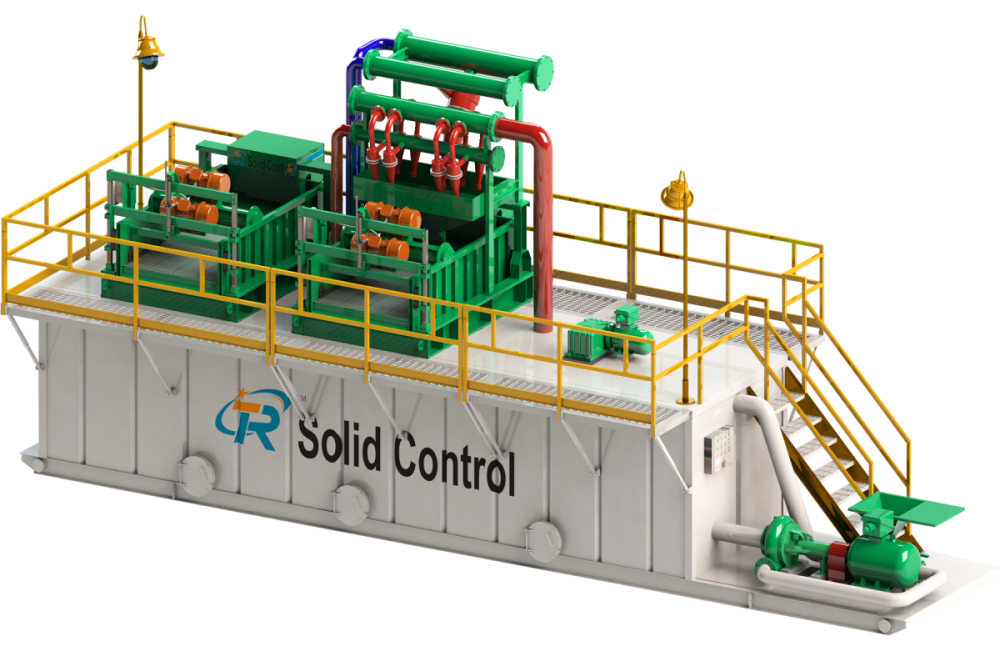

500 GPM Mud Recycling System for HDD Construction in Germany
Used for pipeline crossing projects requiring efficient drilling fluid recovery.

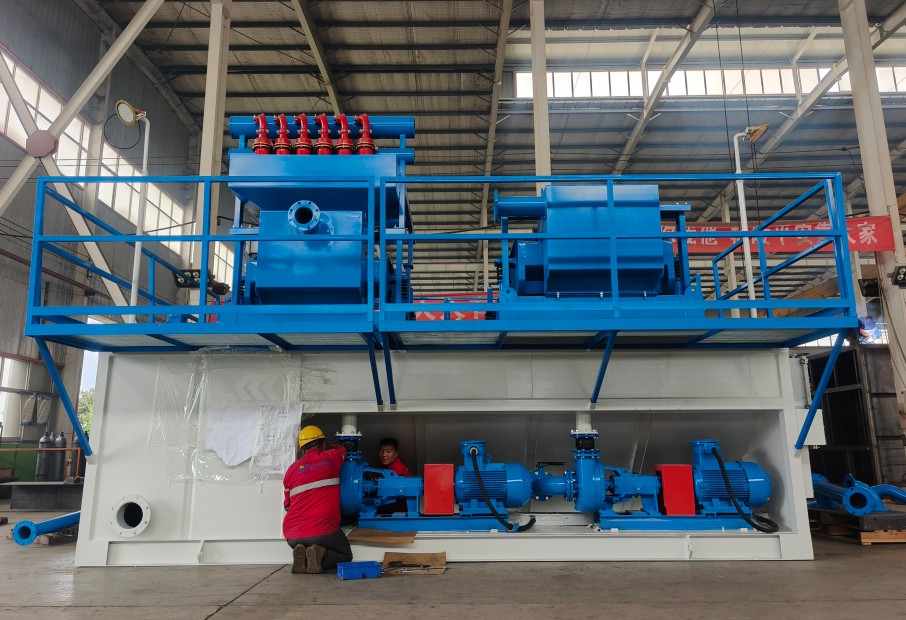

350 GPM Mud Recycling System for HDD Construction in India
Configured according to local ground conditions and project requirements.
