Drilling mud picks up heat as it circulates through the well, especially in high-temperature drilling. When the returning mud becomes too hot, a mud cooling system brings the temperature back under control before the fluid re-enters the active mud system.
Hot mud enters the cooling unit and passes through the mud-side heat exchanger. Water flows through the other side of the cooling circuit and carries the heat away from the drilling fluid. The mud and cooling water stay in separate flow paths during heat exchange.
Once cooled, the mud returns to the active mud system and continues through the normal circulation process. The required cooling duty depends mainly on mud flow, inlet temperature, target outlet temperature, and cooling-water conditions.

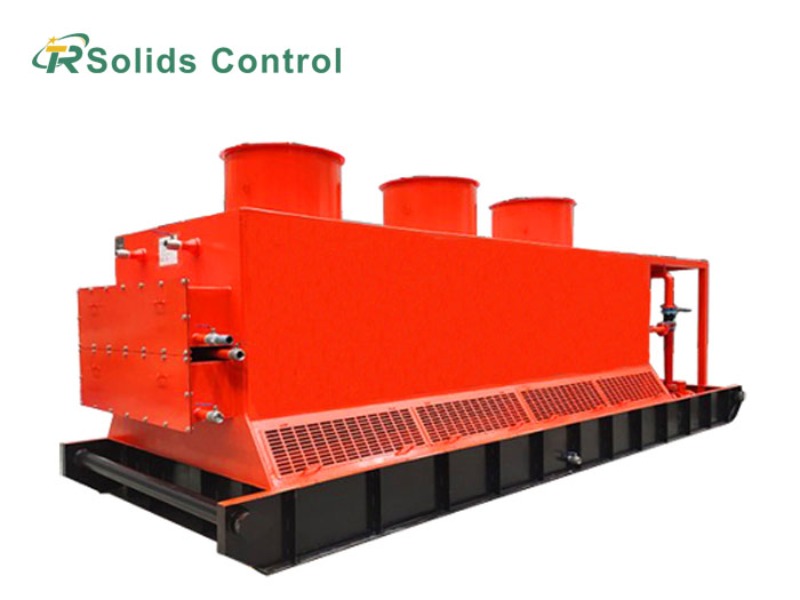

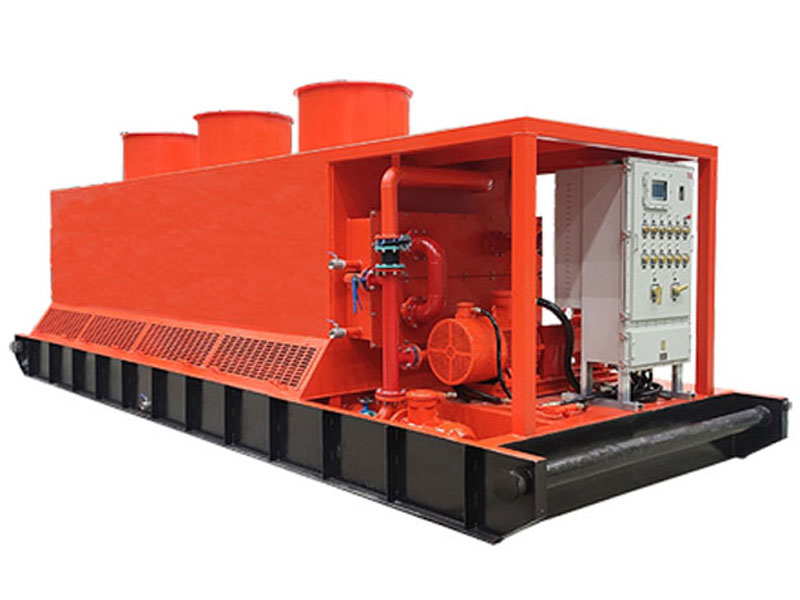

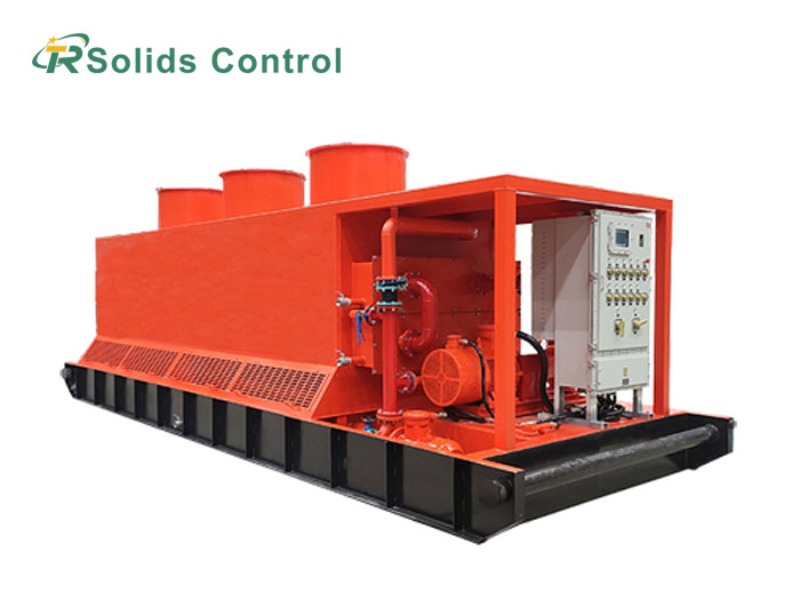

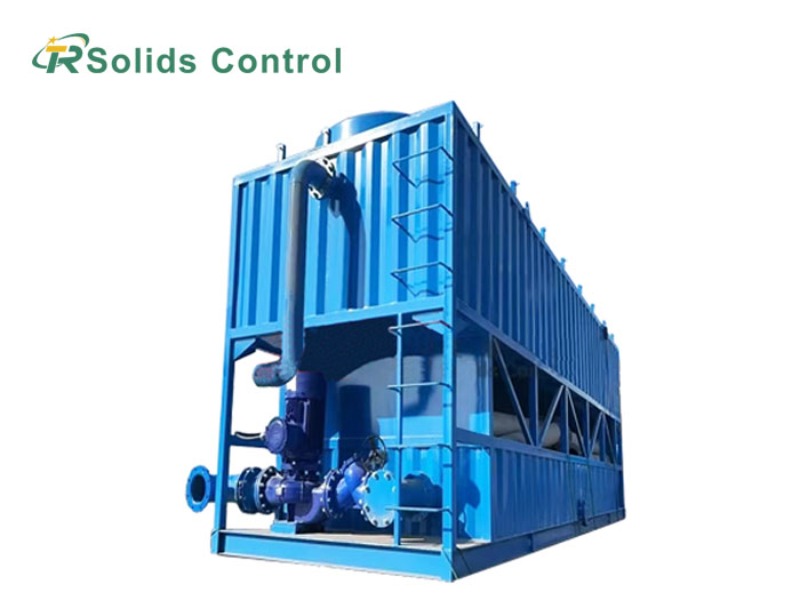

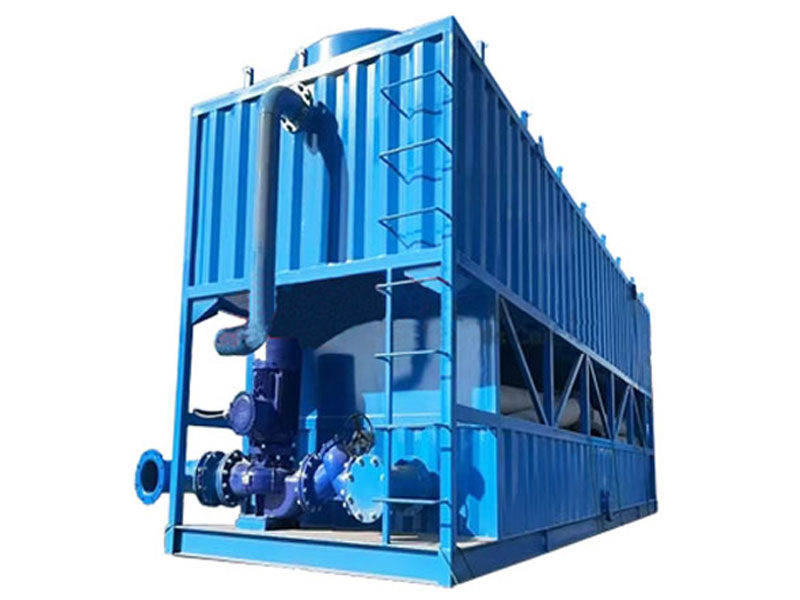

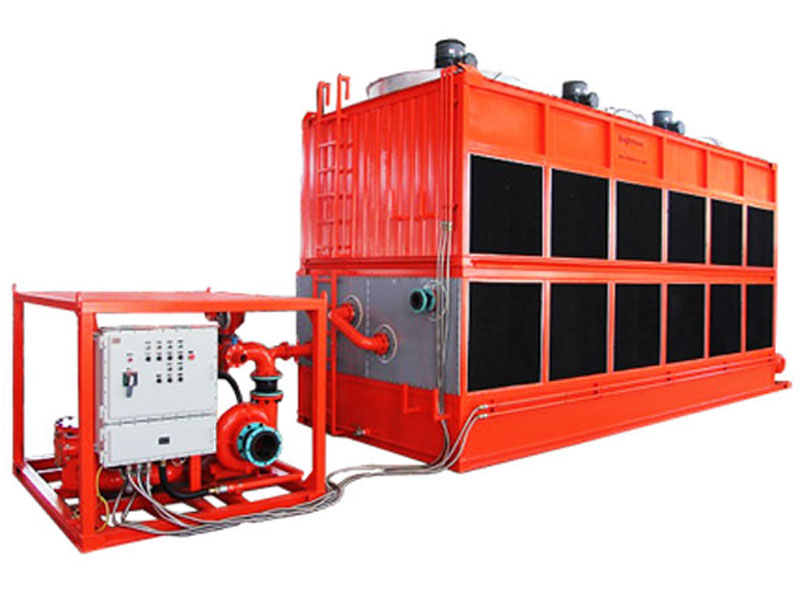

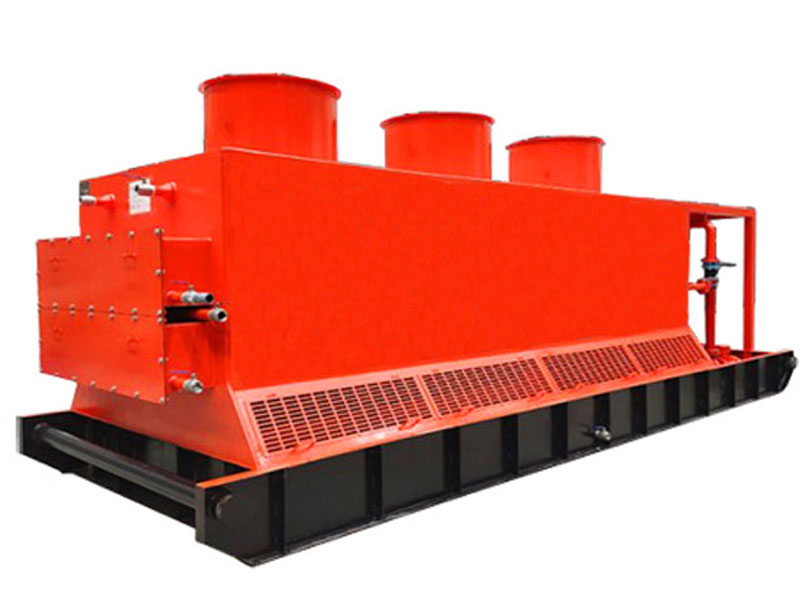

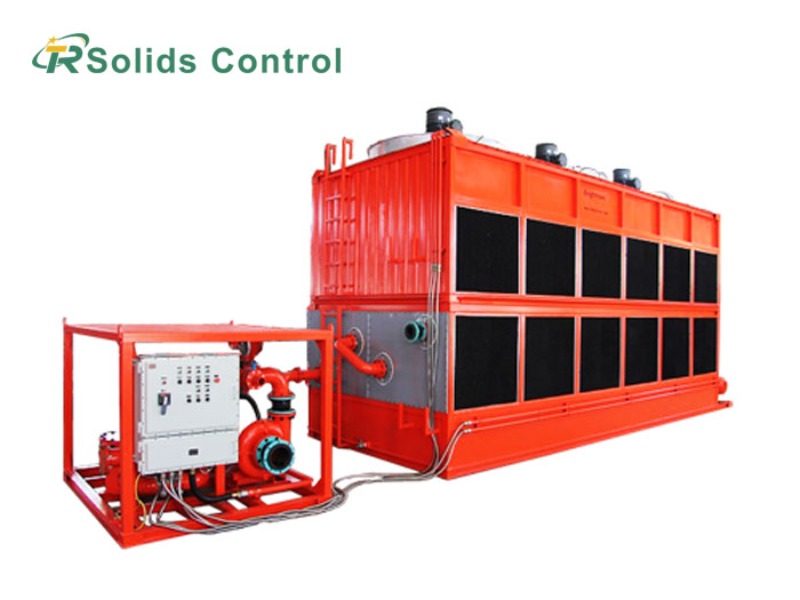

TR cooling systems provide a temperature reduction of approximately 20–30°C under specified operating conditions. PLC control keeps the cooling process under closer temperature management during operation.
